Page 106 - Piper PA-18 Super Cub Interactive Parts Catalog

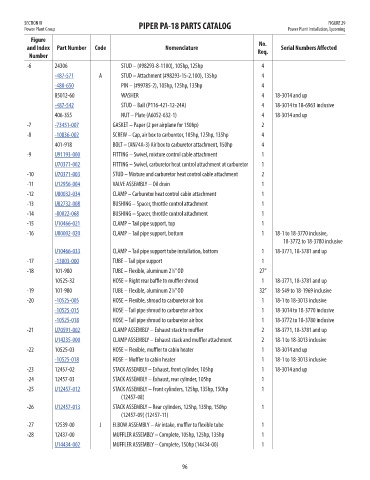

SECTION VI PIPER PA-18 PARTS CATALOG FIGURE 29
Power Plant Group Power Plant Installation, Lycoming
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-6 24306 STUD – (#98293-8-1100), 105hp, 125hp 4 NM!
-487-571 A STUD – Attachment (#98293-15-2.100), 135hp 4 16.45
-480-650 PIN – (#99785-2), 105hp, 125hp, 135hp 4 2.19
85012-60 WASHER 4 18-3014 and up NM!
-487-542 STUD – Ball (P116-421-12-24A) 4 18-3014 to 18-6963 inclusive 2.7
406-355 NUT – Plate (A6052-632-1) 4 18-3014 and up NM!
-7 -73451-007 GASKET – Paper (2 per airplane for 150hp) 2 9.75
-8 -10836-002 SCREW – Cap, air box to carburetor, 105hp, 125hp, 135hp 4 1.84
401-918 BOLT – (AN74A-3) Air box to carburetor attachment, 150hp 4 NM!
-9 U91193-000 FITTING – Swivel, mixture control cable attachment 1 20.67
U70371-002 FITTING – Swivel, carburetor heat control attachment at carburetor 1 15.11
-10 U70371-003 STUD – Mixture and carburetor heat control cable attachment 2 26.41
-11 U12956-004 VALVE ASSEMBLY – Oil drain 1 204.68
-12 U80032-034 CLAMP – Carburetor heat control cabin attachment 1 25.91
-13 U82732-008 BUSHING – Spacer, throttle control attachment 1 17.56
-14 -80022-068 BUSHING – Spacer, throttle control attachment 1 13.51
-15 U10466-021 CLAMP – Tail pipe support, top 1 34.03
-16 U80002-020 CLAMP – Tail pipe support, bottom 1 18-1 to 18-3770 inclusive, 27.9
18-3772 to 18-3780 inclusive
U10466-033 CLAMP – Tail pipe support tube installation, bottom 1 18-3771, 18-3781 and up 35.49
-17 -13003-000 TUBE – Tail pipe support 1 123.98
-18 101-980 TUBE – Flexible, aluminum 2 ⁄8” OD 27” NM!
1
10525-32 HOSE – Right rear baffle to muffler shroud 1 18-3771, 18-3781 and up NM!
-19 101-980 TUBE – Flexible, aluminum 2 ⁄8” OD 32” 18-549 to 18-1969 inclusive NM!
1
-20 -10525-005 HOSE – Flexible, shroud to carburetor air box 1 18-1 to 18-3013 inclusive 33.34
-10525-015 HOSE – Tail pipe shroud to carburetor air box 1 18-3014 to 18-3770 inclusive 31.89
-10525-018 HOSE – Tail pipe shroud to carburetor air box 1 18-3772 to 18-3780 inclusive 38.15
-21 U70591-002 CLAMP ASSEMBLY – Exhaust stack to muffler 2 18-3771, 18-3781 and up 34.61
U14235-000 CLAMP ASSEMBLY – Exhaust stack and muffler attachment 2 18-1 to 18-3013 inclusive 36.19
-22 10525-03 HOSE – Flexible, muffler to cabin heater 1 18-3014 and up NM!
-10525-018 HOSE – Muffler to cabin heater 1 18-1 to 18-3013 inclusive 38.15
-23 12457-02 STACK ASSEMBLY – Exhaust, front cylinder, 105hp 1 18-3014 and up NM!
-24 12457-03 STACK ASSEMBLY – Exhaust, rear cylinder, 105hp 1 NM!
-25 U12457-012 STACK ASSEMBLY – Front cylinders, 125hp, 135hp, 150hp 1 1195.29
(12457-08)
-26 U12457-013 STACK ASSEMBLY – Rear cylinders, 125hp, 135hp, 150hp 1 1249.11
(12457-09) (12457-11)
-27 12539-00 J ELBOW ASSEMBLY – Air intake, muffler to flexible tube 1 NM!
-28 12437-00 MUFFLER ASSEMBLY – Complete, 105hp, 125hp, 135hp 1 NM!
U14434-002 MUFFLER ASSEMBLY – Complete, 150hp (14434-00) 1 2259.54

96
