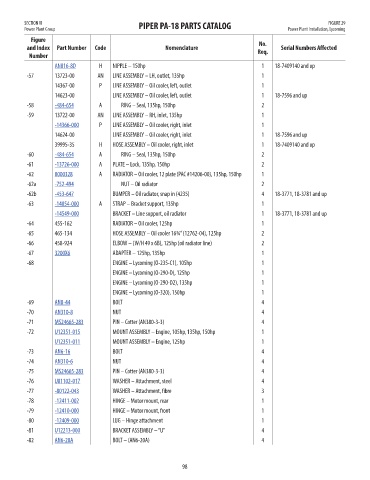

SECTION VI PIPER PA-18 PARTS CATALOG FIGURE 29
Power Plant Group Power Plant Installation, Lycoming
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
AN816-8D H NIPPLE – 150hp 1 18-7409140 and up 8.72
-57 13723-00 AN LINE ASSEMBLY – LH, outlet, 135hp 1 NM!
14367-00 P LINE ASSEMBLY – Oil cooler, left, outlet 1 NM!
14623-00 LINE ASSEMBLY – Oil cooler, left, outlet 1 18-7596 and up NM!
-58 -484-654 A RING – Seal, 135hp, 150hp 2 2.45
-59 13722-00 AN LINE ASSEMBLY – RH, inlet, 135hp 1 NM!
-14366-000 P LINE ASSEMBLY – Oil cooler, right, inlet 1 400.56
14624-00 LINE ASSEMBLY – Oil cooler, right, inlet 1 18-7596 and up NM!
39995-35 H HOSE ASSEMBLY – Oil cooler, right, inlet 1 18-7409140 and up NM!
-60 -484-654 A RING – Seal, 135hp, 150hp 2 2.45
-61 -13726-000 A PLATE – Lock, 135hp, 150hp 2 6.4
-62 8000328 A RADIATOR – Oil cooler, 12 plate (PAC #14206-00), 135hp, 150hp 1 756
-62a -752-494 NUT – Oil radiator 2 5.66
-62b -453-647 BUMPER – Oil radiator, snap in (4235) 4 18-3771, 18-3781 and up 3.46
-63 -14054-000 A STRAP – Bracket support, 135hp 1 10.06
-14549-000 BRACKET – Line support, oil radiator 1 18-3771, 18-3781 and up 88.04
-64 455-162 RADIATOR – Oil cooler, 125hp 1 NM!
-65 465-134 HOSE ASSEMBLY – Oil cooler 16¾” (12762-04), 125hp 2 NM!
-66 458-924 ELBOW – (W/H 49 x 6B), 125hp (oil radiator line) 2 NM!
-67 3200X6 ADAPTER – 125hp, 135hp 1 4.58
-68 ENGINE – Lycoming (O-235-C1), 105hp 1 x
ENGINE – Lycoming (O-290-D), 125hp 1 x
ENGINE – Lycoming (O-290-D2), 135hp 1 x

ENGINE – Lycoming (O-320), 150hp 1 x
-69 AN8-44 BOLT 4 8.6
-70 AN310-8 NUT 4 3.9
-71 MS24665-283 PIN – Cotter (AN380-3-3) 4 0.04
-72 U12351-015 MOUNT ASSEMBLY – Engine, 105hp, 135hp, 150hp 1 965.71
U12351-011 MOUNT ASSEMBLY – Engine, 125hp 1 1165.86
-73 AN6-16 BOLT 4 1.1
-74 AN310-6 NUT 4 1.8
-75 MS24665-283 PIN – Cotter (AN380-3-3) 4 0.04
-76 U81102-017 WASHER – Attachment, steel 4 1.33
-77 -80122-043 WASHER – Attachment, fibre 3 4.51
-78 -12411-002 HINGE – Motor mount, rear 1 34.89
-79 -12410-000 HINGE – Motor mount, front 1 53.15
-80 -12409-000 LUG – Hinge attachment 1 29.75
-81 U12213-000 BRACKET ASSEMBLY – “U” 4 80.98
-82 AN6-20A BOLT – (AN6-20A) 4 0.7
