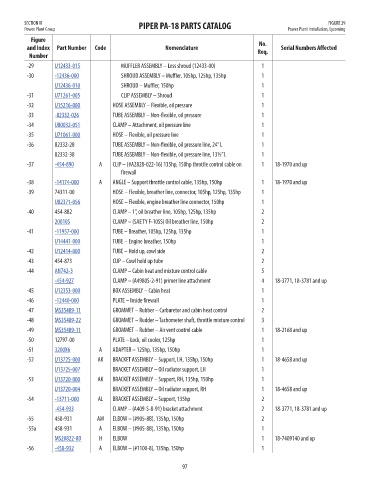

SECTION VI PIPER PA-18 PARTS CATALOG FIGURE 29
Power Plant Group Power Plant Installation, Lycoming
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-29 U12433-015 MUFFLER ASSEMBLY – Less shroud (12433-00) 1 1201.67
-30 -12436-000 SHROUD ASSEMBLY – Muffler, 105hp, 125hp, 135hp 1 318.83
U12436-010 SHROUD – Muffler, 150hp 1 527.16
-31 U71261-005 CLIP ASSEMBLY – Shroud 1 48.96
-32 U15216-000 HOSE ASSEMBLY – Flexible, oil pressure 1 305.42
-33 -82332-026 TUBE ASSEMBLY – Non-flexible, oil pressure 1 80.85
-34 U80032-051 CLAMP – Attachment, oil pressure line 1 17.09
-35 U71061-000 HOSE – Flexible, oil pressure line 1 143.43
-36 82332-28 TUBE ASSEMBLY – Non-flexible, oil pressure line, 24” L 1 NM!
82332-38 TUBE ASSEMBLY – Non-flexible, oil pressure line, 13½” L 1 NM!
-37 -454-890 A CLIP – (#A2828-022-16) 135hp, 150hp throttle control cable on 1 18-1970 and up 2.61
firewall
-38 -14174-000 A ANGLE – Support throttle control cable, 135hp, 150hp 1 18-1970 and up 19.44
-39 74311-00 HOSE – Flexible, breather line, connector, 105hp, 125hp, 135hp 1 NM!
U82371-056 HOSE – Flexible, engine breather line connector, 150hp 1 38.3
-40 454-882 CLAMP – 1”, oil breather line, 105hp, 125hp, 135hp 2 NM!
20010S CLAMP – (SAE TY F-10SS) Oil breather line, 150hp 2 7.68
-41 -11957-000 TUBE – Breather, 105hp, 125hp, 135hp 1 38.48
U14441-000 TUBE – Engine breather, 150hp 1 196.52
-42 U12414-000 TUBE – Hold up, cowl side 2 67.15
-43 454-873 CUP – Cowl hold up tube 2 NM!
-44 AN742-3 CLAMP – Cabin heat and mixture control cable 5 0.72
-454-927 CLAMP – (A4980S-2-91) primer line attachment 4 18-3771, 18-3781 and up 0.04
-45 U12353-000 BOX ASSEMBLY – Cabin heat 1 384.64
-46 -12440-000 PLATE – Inside firewall 1 49.66
-47 MS35489-11 GROMMET – Rubber – Carburetor and cabin heat control 2 0.6
-48 MS35489-22 GROMMET – Rudder – Tachometer shaft, throttle mixture control 3 2.34
-49 MS35489-11 GROMMET – Rubber – Air vent control cable 1 18-2168 and up 0.6
-50 12797-00 PLATE – Lock, oil cooler, 125hp 1 NM!
-51 3200X6 A ADAPTER – 125hp, 135hp, 150hp 1 4.58
-52 U13725-000 AK BRACKET ASSEMBLY – Support, LH, 135hp, 150hp 1 18-4658 and up 579.83
U13725-007 BRACKET ASSEMBLY – Oil radiator support, LH 1 593.69
-53 U13720-000 AK BRACKET ASSEMBLY – Support, RH, 135hp, 150hp 1 355.3
U13720-004 BRACKET ASSEMBLY – Oil radiator support, RH 1 18-4658 and up 301.38
-54 -13711-000 AL BRACKET ASSEMBLY – Support, 135hp 2 15.82

-454-933 CLAMP – (A409-S-8-91) bracket attachment 2 18-3771, 18-3781 and up 1.05
-55 458-931 AM ELBOW – (#905-8B), 135hp, 150hp 2 NM!
-55a 458-931 A ELBOW – (#905-8B), 135hp, 150hp 1 NM!
MS20822-8D H ELBOW 1 18-7409140 and up 32.36
-56 -458-932 A ELBOW – (#1100-8), 135hp, 150hp 1 14.44
