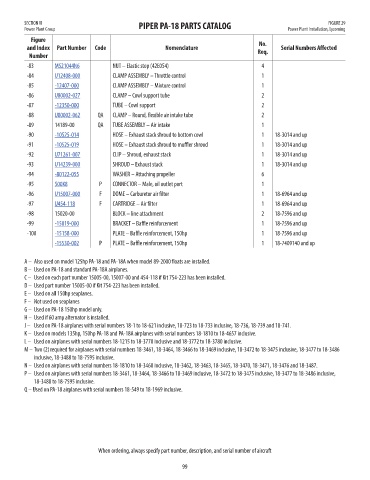

SECTION VI PIPER PA-18 PARTS CATALOG FIGURE 29
Power Plant Group Power Plant Installation, Lycoming
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-83 MS21044N6 NUT – Elastic stop (42E054) 4 0.58
-84 U12408-000 CLAMP ASSEMBLY – Throttle control 1 100.94
-85 -12407-000 CLAMP ASSEMBLY – Mixture control 1 95.91
-86 U80002-027 CLAMP – Cowl support tube 2 23.38
-87 -12350-000 TUBE – Cowl support 2 83.08
-88 U80002-062 QA CLAMP – Round, flexible air intake tube 2 7.8
-89 14189-00 QA TUBE ASSEMBLY – Air intake 1 NM!
-90 -10525-014 HOSE – Exhaust stack shroud to bottom cowl 1 18-3014 and up 35.83
-91 -10525-019 HOSE – Exhaust stack shroud to muffler shroud 1 18-3014 and up 69.85
-92 U71261-007 CLIP – Shroud, exhaust stack 1 18-3014 and up 58.51
-93 U14239-000 SHROUD – Exhaust stack 1 18-3014 and up 272.4
-94 -80122-055 WASHER – Attaching propeller 6 5.37
-95 500X8 P CONNECTOR – Male, oil outlet port 1 7.61
-96 U15007-000 F DOME – Carburetor air filter 1 18-6964 and up 101.19
-97 U454-118 F CARTRIDGE – Air filter 1 18-6964 and up 74.15
-98 15020-00 BLOCK – line attachment 2 18-7596 and up NM!
-99 -15019-000 BRACKET – Baffle reinforcement 1 18-7596 and up 44.36
-100 -15158-000 PLATE – Baffle reinforcement, 150hp 1 18-7596 and up 50.62
-15530-002 P PLATE – Baffle reinforcement, 150hp 1 18-7409140 and up 33.34

A – Also used on model 125hp PA-18 and PA-18A when model 89-2000 floats are installed.
B – Used on PA-18 and standard PA-18A airplanes.
C – Used on each part number 15005-00, 15007-00 and 454-118 if Kit 754-223 has been installed.
D – Used part number 15005-00 if Kit 754-223 has been installed.
E – Used on all 150hp seaplanes.
F – Not used on seaplanes
G – Used on PA-18 150hp model only.
H – Used if 60 amp alternator is installed.
J – Used on PA-18 airplanes with serial numbers 18-1 to 18-621 inclusive, 18-723 to 18-733 inclusive, 18-736, 18-739 and 18-741.
K – Used on models 135hp, 150hp PA-18 and PA-18A airplanes with serial numbers 18-1810 to 18-4657 inclusive.
L – Used on airplanes with serial numbers 18-1215 to 18-3770 inclusive and 18-3772 to 18-3780 inclusive.
M – Two (2) required for airplanes with serial numbers 18-3461, 18-3464, 18-3466 to 18-3469 inclusive, 18-3472 to 18-3475 inclusive, 18-3477 to 18-3486
inclusive, 18-3488 to 18-7595 inclusive.
N – Used on airplanes with serial numbers 18-1810 to 18-3460 inclusive, 18-3462, 18-3463, 18-3465, 18-3470, 18-3471, 18-3476 and 18-3487.
P – Used on airplanes with serial numbers 18-3461, 18-3464, 18-3466 to 18-3469 inclusive, 18-3472 to 18-3475 inclusive, 18-3477 to 18-3486 inclusive,
18-3488 to 18-7595 inclusive.
Q – Used on PA-18 airplanes with serial numbers 18-549 to 18-1969 inclusive.

When ordering, always specify part number, description, and serial number of aircraft

99
