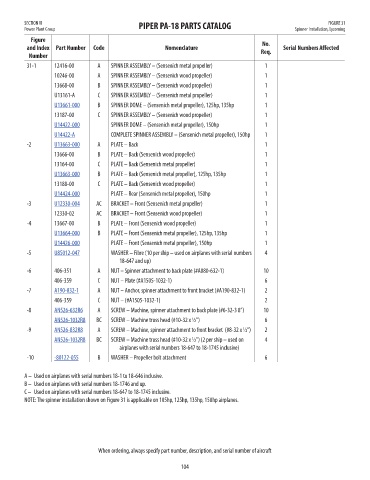

SECTION VI PIPER PA-18 PARTS CATALOG FIGURE 31
Power Plant Group Spinner Installation, Lycoming
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
31-1 12416-00 A SPINNER ASSEMBLY – (Sensenich metal propeller) 1 NM!
10246-00 A SPINNER ASSEMBLY – (Sensenich wood propeller) 1 NM!
13668-00 B SPINNER ASSEMBLY – (Sensenich wood propeller) 1 NM!
U13161-A C SPINNER ASSEMBLY – (Sensenich metal propeller) 1 NM!
U13661-000 B SPINNER DOME – (Sensenich metal propeller), 125hp, 135hp 1 397.37
13187-00 C SPINNER ASSEMBLY – (Sensenich wood propeller) 1 NM!
U14422-000 SPINNER DOME – (Sensenich metal propeller), 150hp 1 516.26
U14422-A COMPLETE SPINNER ASSEMBLY – (Sensenich metal propeller), 150hp 1 765.59
-2 U13663-000 A PLATE – Back 1 183.48
13666-00 B PLATE – Back (Sensenich wood propeller) 1 NM!
13164-00 C PLATE – Back (Sensenich metal propeller) 1 NM!
U13663-000 B PLATE – Back (Sensenich metal propeller), 125hp, 135hp 1 183.48
13188-00 C PLATE – Back (Sensenich wood propeller) 1 NM!
U14424-000 PLATE – Rear (Sensenich metal propeller), 150hp 1 247
-3 U12330-004 AC BRACKET – Front (Sensenich metal propeller) 1 59.24
12330-02 AC BRACKET – Front (Sensenich wood propeller) 1 NM!
-4 13667-00 B PLATE – Front (Sensenich wood propeller) 1 NM!
U13664-000 B PLATE – Front (Sensenich metal propeller), 125hp, 135hp 1 170.2
U14426-000 PLATE – Front (Sensenich metal propeller), 150hp 1 189.44
-5 U85012-047 WASHER – Fibre (10 per ship – used on airplanes with serial numbers 4 0.83
18-647 and up)
-6 406-351 A NUT – Spinner attachment to back plate (#A880-632-1) 10 NM!
406-359 C NUT – Plate (#A1505-1032-1) 6 NM!
-7 A190-832-1 A NUT – Anchor, spinner attachment to front bracket (#A190-832-1) 2 0.7
406-359 C NUT – (#A1505-1032-1) 2 NM!
-8 AN526-632R6 A SCREW – Machine, spinner attachment to back plate (#6-32-3 8”) 10 0.2
AN526-1032R8 BC SCREW – Machine truss head (#10-32 x ½”) 6 0.18
-9 AN526-832R8 A SCREW – Machine, spinner attachment to front bracket (#8-32 x ½”) 2 0.04
AN526-1032R8 BC SCREW – Machine truss head (#10-32 x ½”) (2 per ship – used on 4 0.18
airplanes with serial numbers 18-647 to 18-1745 inclusive)
-10 -80122-055 B WASHER – Propeller bolt attachment 6 5.37

A – Used on airplanes with serial numbers 18-1 to 18-646 inclusive.
B – Used on airplanes with serial numbers 18-1746 and up.
C – Used on airplanes with serial numbers 18-647 to 18-1745 inclusive.
NOTE: The spinner installation shown on Figure 31 is applicable on 105hp, 125hp, 135hp, 150hp airplanes.

When ordering, always specify part number, description, and serial number of aircraft

104
