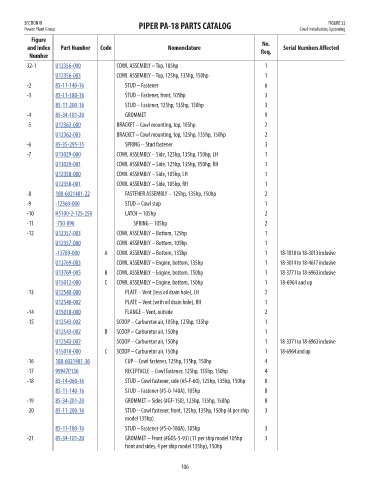

SECTION VI PIPER PA-18 PARTS CATALOG FIGURE 32
Power Plant Group Cowl Installation, Lycoming
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
32-1 U12356-000 COWL ASSEMBLY – Top, 105hp 1 366.33
U12356-003 COWL ASSEMBLY – Top, 125hp, 135hp, 150hp 1 328.01
-2 85-11-140-16 STUD – Fastener 6 1.16
-3 85-11-180-16 STUD – Fastener, front, 105hp 3 1.48
85-11-200-16 STUD – Fastener, 125hp, 135hp, 150hp 3 1.39
-4 85-34-101-20 GROMMET 9 0.14
-5 U12362-000 BRACKET – Cowl mounting, top, 105hp 2 76.88
U12362-003 BRACKET – Cowl mounting, top, 125hp, 135hp, 150hp 2 106.81
-6 85-35-295-15 SPRING – Stud fastener 3 1.26
-7 U13029-000 COWL ASSEMBLY – Side, 125hp, 135hp, 150hp, LH 1 730.62
U13029-001 COWL ASSEMBLY – Side, 125hp, 135hp, 150hp, RH 1 689.83
U12358-000 COWL ASSEMBLY – Side, 105hp, LH 1 570.22
U12358-001 COWL ASSEMBLY – Side, 105hp, RH 1 570.22
-8 108-6021401-22 FASTENER ASSEMBLY – 125hp, 135hp, 150hp 2 109.39
-9 -12360-000 STUD – Cowl stop 1 31.04
-10 H5100-2-125-250 LATCH – 105hp 2 304.12
-11 -750-896 SPRING – 105hp 2 11.15
-12 U12357-003 COWL ASSEMBLY – Bottom, 125hp 1 1084.73
U12357-000 COWL ASSEMBLY – Bottom, 105hp 1 1093.78
-13769-000 A COWL ASSEMBLY – Bottom, 135hp 1 18-1810 to 18-3013 inclusive 1191.06
U13769-003 COWL ASSEMBLY – Engine, bottom, 135hp 1 18-3014 to 18-4617 inclusive 1250.6
U13769-005 B COWL ASSEMBLY – Engine, bottom, 150hp 1 18-3771 to 18-6963 inclusive 1554.24
U15012-000 C COWL ASSEMBLY – Engine, bottom, 150hp 1 18-6964 and up 1554.24
-13 U12540-000 PLATE – Vent (less oil drain hole), LH 2 57.96

U12540-002 PLATE – Vent (with oil drain hole), RH 1 63.59
-14 U15018-000 FLANGE – Vent, outside 2 85.71
-15 U12543-002 SCOOP – Carburetor air, 105hp, 125hp, 135hp 1 64.67
U12543-002 B SCOOP – Carburetor air, 150hp 1 64.67
U12543-002 SCOOP – Carburetor air, 150hp 1 18-3371 to 18-6963 inclusive 64.67
U15010-000 C SCOOP – Carburetor air, 150hp 1 18-6964 and up 295.26
-16 108-6021401-36 CUP – Cowl fastener, 125hp, 135hp, 150hp 4 32.83
-17 99947P130 RECEPTACLE – Cowl fastener, 125hp, 135hp, 150hp 4 6.46
-18 85-14-060-16 STUD – Cowl fastener, side (#5-F-60), 125hp, 135hp, 150hp 8 1.22
85-11-140-16 STUD – Fastener (#5-0-140A), 105hp 8 1.16
-19 85-34-201-20 GROMMET – Sides (#GF-150), 125hp, 135hp, 150hp 8 0.18
-20 85-11-200-16 STUD – Cowl fastener, front, 125hp, 135hp, 150hp (4 per ship 3 1.39
model 135hp)
85-11-180-16 STUD – Fastener (#5-0-180A), 105hp 3 1.48
-21 85-34-101-20 GROMMET – Front (#GOS-5-93) (11 per ship model 105hp 3 0.14
front and sides, 4 per ship model 135hp), 150hp

106
