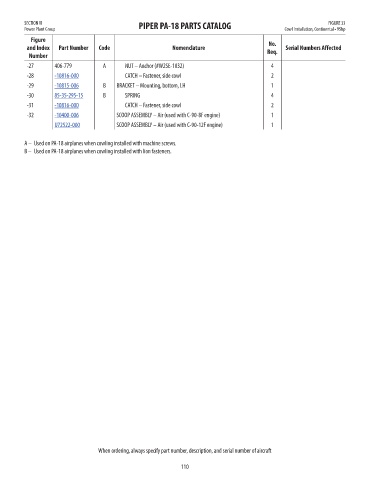

SECTION VI PIPER PA-18 PARTS CATALOG FIGURE 33
Power Plant Group Cowl Installation, Continental • 95hp
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-27 406-779 A NUT – Anchor (#W2SE-1032) 4 NM!
-28 -10816-000 CATCH – Fastener, side cowl 2 54.87
-29 -10815-006 B BRACKET – Mounting, bottom, LH 1 76.14
-30 85-35-295-15 B SPRING 4 1.26
-31 -10816-000 CATCH – Fastener, side cowl 2 54.87
-32 -10400-006 SCOOP ASSEMBLY – Air (used with C-90-8F engine) 1 61.17
U72522-000 SCOOP ASSEMBLY – Air (used with C-90-12F engine) 1 363.81

A – Used on PA-18 airplanes when cowling installed with machine screws.
B – Used on PA-18 airplanes when cowling installed with lion fasteners.

When ordering, always specify part number, description, and serial number of aircraft

110
