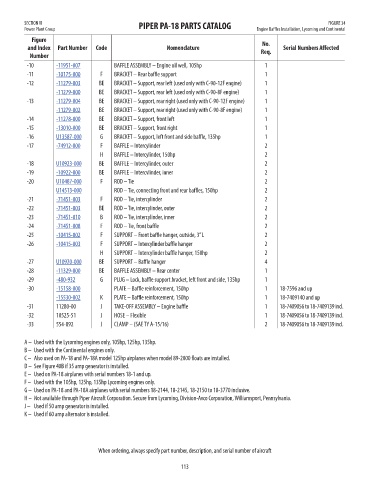

SECTION VI PIPER PA-18 PARTS CATALOG FIGURE 34
Power Plant Group Engine Baffles Installation, Lycoming and Continental
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-10 -11951-007 BAFFLE ASSEMBLY – Engine oil well, 105hp 1 112.46
-11 -10175-000 F BRACKET – Rear baffle support 1 66.13
-12 -11279-003 BE BRACKET – Support, rear left (used only with C-90-12F engine) 1 17.12
-11279-000 BE BRACKET – Support, rear left (used only with C-90-8F engine) 1 10.01
-13 -11279-004 BE BRACKET – Support, rear right (used only with C-90-12F engine) 1 7.5
-11279-002 BE BRACKET – Support, rear right (used only with C-90-8F engine) 1 8.1
-14 -11278-000 BE BRACKET – Support, front left 1 10.95
-15 -13010-000 BE BRACKET – Support, front right 1 5.57
-16 U13587-000 G BRACKET – Support, left front and side baffle, 135hp 1 67.03
-17 -74912-000 F BAFFLE – lntercylinder 2 44.85
H BAFFLE – lntercylinder, 150hp 2 x
-18 U10923-000 BE BAFFLE – lntercylinder, outer 2 27.74
-19 -10922-000 BE BAFFLE – lntercvlinder, inner 2 14.52
-20 U10487-000 F ROD – Tie 2 19.55
U14513-000 ROD – Tie, connecting front and rear baffles, 150hp 2 49.98
-21 -71451-003 F ROD – Tie, intercylinder 2 55.44
-22 -71451-003 BE ROD – Tie, intercylinder, outer 2 55.44
-23 -71451-010 B ROD – Tie, intercylinder, inner 2 42.44
-24 -71451-008 F ROD – Tie, front baffle 2 5.16
-25 -10415-002 F SUPPORT – Front baffle hanger, outside, 3” L 2 34.26
-26 -10415-003 F SUPPORT – lntercylinder baffle hanger 2 38.75
H SUPPORT – lntercylinder baffle hanger, 150hp 2 x
-27 U10920-000 BE SUPPORT – Baffle hanger 4 23.03
-28 -11329-000 BE BAFFLE ASSEMBLY – Rear center 1 75.96
-29 -480-932 G PLUG – Lock, baffle support bracket, left front and side, 135hp 1 3.68
-30 -15158-000 PLATE – Baffle reinforcement, 150hp 1 18-7596 and up 50.62
-15530-002 K PLATE – Baffle reinforcement, 150hp 1 18-7409140 and up 33.34
-31 11280-00 J TAKE-OFF ASSEMBLY – Engine baffle 1 18-7409056 to 18-7409139 incl. NM!
-32 10525-51 J HOSE – Flexible 1 18-7409056 to 18-7409139 incl. NM!
-33 554-892 J CLAMP – (SAE TY A-15/16) 2 18-7409056 to 18-7409139 incl. NM!

A – Used with the Lycoming engines only, 105hp, 125hp, 135hp.
B – Used with the Continental engines only.
C – Also used on PA-18 and PA-18A model 125hp airplanes when model 89-2000 floats are installed.
D – See Figure 40B if 35 amp generator is installed.
E – Used on PA-18 airplanes with serial numbers 18-1 and up.
F – Used with the 105hp, 125hp, 135hp Lycoming engines only.
G – Used on PA-18 and PA-18A airplanes with serial numbers 18-2144, 18-2145, 18-2150 to 18-3770 inclusive.
H – Not available through Piper Aircraft Corporation. Secure from Lycoming, Division-Avco Corporation, Williamsport, Pennsylvania.
J – Used if 50 amp generator is installed.
K – Used if 60 amp alternator is installed.

When ordering, always specify part number, description, and serial number of aircraft

113
