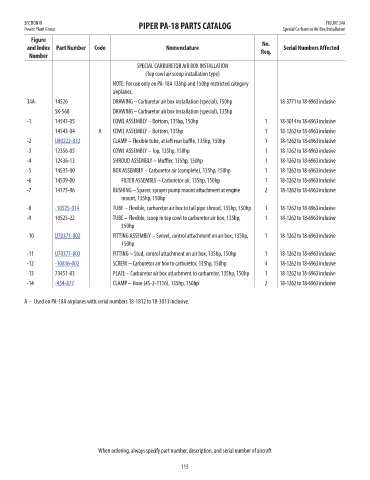

SECTION VI PIPER PA-18 PARTS CATALOG FIGURE 34A
Power Plant Group Special Carburetor Air Box Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
SPECIAL CARBURETOR AIR BOX INSTALLATION x
(Top cowl air scoop installation type)
NOTE: For use only on PA-18A 135hp and 150hp restricted category x
airplanes.
34A- 14526 DRAWING – Carburetor air box installation (special), 150hp 18-3771 to 18-6963 inclusive NM!
SK-568 DRAWING – Carburetor air box installation (special), 135hp NM!
-1 14543-05 COWL ASSEMBLY – Bottom, 135hp, 150hp 1 18-3014 to 18-6963 inclusive NM!
14543-04 A COWL ASSEMBLY – Bottom, 135hp 1 18-1262 to 18-6963 inclusive NM!
-2 U80222-032 CLAMP – Flexible tube, at left rear baffle, 135hp, 150hp 1 18-1262 to 18-6963 inclusive 23.8
-3 12356-05 COWL ASSEMBLY – Top, 135hp, 150hp 1 18-1262 to 18-6963 inclusive NM!
-4 12436-13 SHROUD ASSEMBLY – Muffler, 135hp, 150hp 1 18-1262 to 18-6963 inclusive NM!
-5 14535-00 BOX ASSEMBLY – Carburetor air (complete), 135hp, 150hp 1 18-1262 to 18-6963 inclusive NM!
-6 14539-00 FILTER ASSEMBLY – Carburetor air, 135hp, 150hp 1 18-1262 to 18-6963 inclusive NM!
-7 14175-96 BUSHING – Spacer, sprayer pump mount attachment at engine 2 18-1262 to 18-6963 inclusive NM!
mount, 135hp, 150hp
-8 -10525-014 TUBE – Flexible, carburetor air box to tail pipe shroud, 135hp, 150hp 1 18-1262 to 18-6963 inclusive 35.83
-9 10525-22 TUBE – Flexible, scoop in top cowl to carburetor air box, 135hp, 1 18-1262 to 18-6963 inclusive NM!
150hp
-10 U70371-002 FITTING ASSEMBLY – Swivel, control attachment on air box, 135hp, 1 18-1262 to 18-6963 inclusive 15.11
150hp

-11 U70371-003 FITTING – Stud, control attachment on air box, 135hp, 150hp 1 18-1262 to 18-6963 inclusive 26.41
-12 -10836-002 SCREW – Carburetor air box to carburetor, 135hp, 150hp 4 18-1262 to 18-6963 inclusive 1.84
-13 73451-03 PLATE – Carburetor air box attachment to carburetor, 135hp, 150hp 1 18-1262 to 18-6963 inclusive NM!
-14 -454-877 CLAMP – Hose (#S-2-1116), 135hp, 150hp 2 18-1262 to 18-6963 inclusive 4.35

A – Used on PA-18A airplanes with serial numbers 18-1812 to 18-3013 inclusive.

When ordering, always specify part number, description, and serial number of aircraft

115
