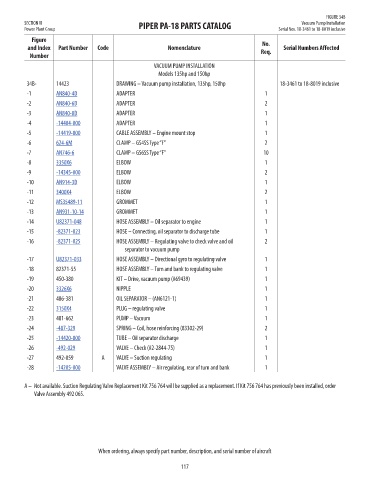

FIGURE 34B
SECTION VI PIPER PA-18 PARTS CATALOG Vacuum Pump Installation
Power Plant Group Serial Nos. 18-3461 to 18-8019 inclusive
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
VACUUM PUMP INSTALLATION x
Models 135hp and 150hp
34B- 14423 DRAWING – Vacuum pump installation, 135hp, 150hp 18-3461 to 18-8019 inclusive NM!
-1 AN840-4D ADAPTER 1 7.5
-2 AN840-6D ADAPTER 2 11.96
-3 AN840-8D ADAPTER 1 11.31
-4 -14404-000 ADAPTER 1 9.07
-5 -14419-000 CABLE ASSEMBLY – Engine mount stop 1 115

-6 624-6M CLAMP – GS4SS Type “F” 2 1.51
-7 AN746-6 CLAMP – GS6SS Type “F” 10 1.79
-8 3350X6 ELBOW 1 5.1
-9 -14345-000 ELBOW 2 27.19
-10 AN914-3D ELBOW 1 43.32
-11 3400X4 ELBOW 2 7.4
-12 MS35489-11 GROMMET 1 0.6
-13 AN931-10-14 GROMMET 1 2
-14 U82371-048 HOSE ASSEMBLY – Oil separator to engine 1 53.36
-15 -82371-023 HOSE – Connecting, oil separator to discharge tube 1 37.37
-16 -82371-025 HOSE ASSEMBLY – Regulating valve to check valve and oil 2 54.17
separator to vacuum pump
-17 U82371-033 HOSE ASSEMBLY – Directional gyro to regulating valve 1 52.26
-18 82371-55 HOSE ASSEMBLY – Turn and bank to regulating valve 1 NM!
-19 450-380 KIT – Drive, vacuum pump (#69439) 1 NM!
-20 3326X6 NIPPLE 1 4.87
-21 486-381 OIL SEPARATOR – (AN6121-1) 1 NM!
-22 3150X4 PLUG – regulating valve 1 5.55
-23 481-662 PUMP – Vacuum 1 NM!
-24 -487-329 SPRING – Coil, hose reinforcing (83302-29) 2 3.3
-25 -14420-000 TUBE – Oil separator discharge 1 41.78
-26 -492-029 VALVE – Check (#2-2844-75) 1 104.54
-27 492-059 A VALVE – Suction regulating 1 NM!
-28 -14205-000 VALVE ASSEMBLY – Air regulating, rear of turn and bank 1 101.87

A – Not available. Suction Regulating Valve Replacement Kit 756 764 will be supplied as a replacement. If Kit 756 764 has previously been installed, order
Valve Assembly 492 065.

When ordering, always specify part number, description, and serial number of aircraft

117
