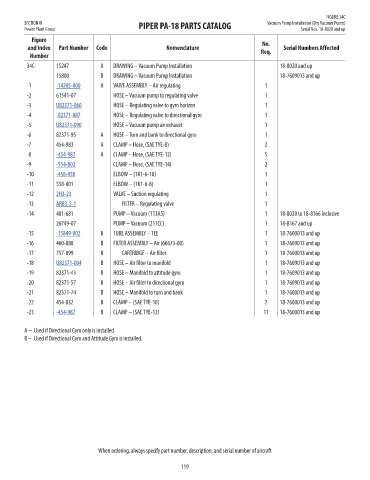

FIGURE 34C
SECTION VI PIPER PA-18 PARTS CATALOG Vacuum Pump Installation (Dry Vacuum Pump)
Power Plant Group Serial Nos. 18-8020 and up
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
34C- 15247 A DRAWING – Vacuum Pump Installation 18-8020 and up NM!
15800 B DRAWING – Vacuum Pump Installation 18-7609013 and up NM!
-1 -14205-000 A VAlVE ASSEMBLY – Air regulating 1 101.87
-2 61541-07 HOSE – Vacuum pump to regulating valve 1 NM!
-3 U82371-060 HOSE – Regulating valve to gyro horizon 1 68.17
-4 -82371-087 HOSE – Regulating valve to directional gyro 1 30.53
-5 U82371-090 HOSE – Vacuum pump air exhaust 1 27
-6 82371-95 A HOSE – Turn and bank to directional gyro 1 NM!
-7 454-983 A CLAMP – Hose, (SAE TYE-8) 2 NM!
-8 -454-987 A CLAMP – Hose, (SAE TYE-12) 5 0.07
-9 -554-802 CLAMP – Hose, (SAE TYE-14) 2 0.11
-10 -458-958 ELBOW – (1K1-6-10) 1 523.2
-11 558-001 ELBOW – (1K1-6-8) 1 NM!
-12 2H3-23 VALVE – Suction regulating 1 3310.05
-13 ARB3-5-1 FILTER – Regulating valve 1 4.2
-14 481-681 PUMP – Vacuum (113A5) 1 18-8020 to 18-8166 inclusive NM!
26749-07 PUMP – Vacuum (211CC) 1 18-8167 and up NM!
-15 -15849-002 B TUBE ASSEMBLY – TEE 1 18-7600013 and up 61.1
-16 460-888 B FILTER ASSEMBLY – Air (66673-00) 1 18-7609013 and up NM!
-17 757-899 B CARTRIDGE – Air filter 1 18-7600013 and up NM!
-18 U82371-004 B HOSE – Air filter to manifold 1 18-7609013 and up 19.64
-19 82371-43 B HOSE – Manifold to attitude gyro 1 18-7609013 and up NM!
-20 82371-57 B HOSE – Air filter to directional gyro 1 18-7609013 and up NM!

-21 82371-74 B HOSE – Manifold to turn and bank 1 18-7600013 and up NM!
-22 454-832 B CLAMP – (SAE TYE-10) 2 18-7600013 and up NM!
-23 -454-987 B CLAMP – (SAE TYE-12) 11 18-7600013 and up 0.07

A – Used if Directional Gyro only is installed.
B – Used if Directional Gyro and Attitude Gyro is installed.

When ordering, always specify part number, description, and serial number of aircraft

119
