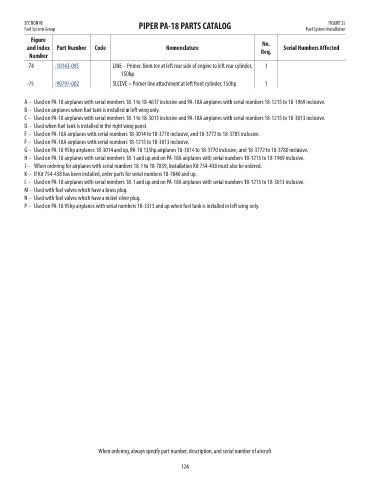

SECTION VII PIPER PA-18 PARTS CATALOG FIGURE 35
Fuel System Group Fuel System Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-74 -10143-095 LINE – Primer, from tee at left rear side of engine to left rear cylinder, 1 75.07
150hp
-75 -90797-002 SLEEVE – Primer line attachment at left front cylinder, 150hp 1 2.29

A – Used on PA-18 airplanes with serial numbers 18-1 to 18-4617 inclusive and PA-18A airplanes with serial numbers 18-1215 to 18-1969 inclusive.
B – Used on airplanes when fuel tank is installed in left wing only.
C – Used on PA-18 airplanes with serial numbers 18-1 to 18-3013 inclusive and PA-18A airplanes with serial numbers 18-1215 to 18-3013 inclusive.
D – Used when fuel tank is installed in the right wing panel.
E – Used on PA-18A airplanes with serial numbers 18-3014 to 18-3770 inclusive, and 18-3772 to 18-3785 inclusive.
F – Used on PA-18A airplanes with serial numbers 18-1215 to 18-3013 inclusive.
G – Used on PA-18 95hp airplanes 18-3014 and up, PA-18 135hp airplanes 18-3014 to 18-3770 inclusive, and 18-3772 to 18-3780 inclusive.
H – Used on PA-18 airplanes with serial numbers 18-1 and up and on PA-18A airplanes with serial numbers 18-1215 to 18-1969 inclusive.
J – When ordering for airplanes with serial numbers 18-1 to 18-7839, Installation Kit 754-438 must also be ordered.
K – If Kit 754-438 has been installed, order parts for serial numbers 18-7840 and up.
L – Used on PA-18 airplanes with serial numbers 18-1 and up and on PA-18A airplanes with serial numbers 18-1215 to 18-3013 inclusive.
M – Used with fuel valves which have a brass plug.
N – Used with fuel valves which have a nickel silver plug.
P – Used on PA-18 95hp airplanes with serial numbers 18-3313 and up when fuel tank is installed in left wing only.

When ordering, always specify part number, description, and serial number of aircraft
