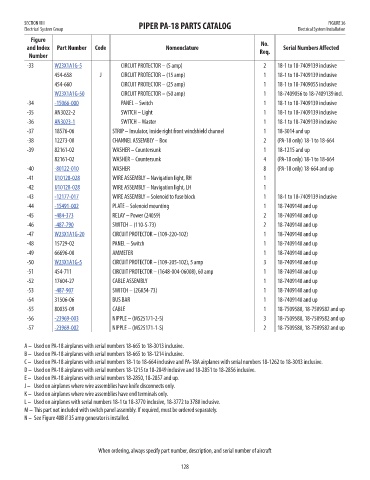

SECTION VIII PIPER PA-18 PARTS CATALOG FIGURE 36
Electrical System Group Electrical System Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-33 W23X1A1G-5 CIRCUIT PROTECTOR – (5 amp) 2 18-1 to 18-7409139 inclusive 43.12
454-658 J CIRCUIT PROTECTOR – (15 amp) 1 18-1 to 18-7409139 inclusive NM!
454-660 CIRCUIT PROTECTOR – (25 amp) 1 18-1 to 18-7409055 inclusive NM!
W23X1A1G-50 CIRCUIT PROTECTOR – (50 amp) 1 18-7409056 to 18-7409139 incl. 43.19
-34 -15066-000 PANEL – Switch 1 18-1 to 18-7409139 inclusive 84.34
-35 AN3022-2 SWITCH – Light 1 18-1 to 18-7409139 inclusive NM!
-36 AN3023-1 SWITCH – Master 1 18-1 to 18-7409139 inclusive 400
-37 18576-06 STRIP – Insulator, inside right front windshield channel 1 18-3014 and up NM!
-38 12273-00 CHANNEL ASSEMBLY – Box 2 (PA-18 only) 18-1 to 18-664 NM!
-39 82161-02 WASHER – Countersunk 1 18-1215 and up NM!
82161-02 WASHER – Countersunk 4 (PA-18 only) 18-1 to 18-664 NM!
-40 -80122-010 WASHER 8 (PA-18 only) 18-664 and up 4.81
-41 U10128-028 WIRE ASSEMBLY – Navigation light, RH 1 35.56
-42 U10128-028 WIRE ASSEMBLY – Navigation light, LH 1 35.56
-43 -12177-017 WIRE ASSEMBLY – Solenoid to fuse block 1 18-1 to 18-7409139 inclusive 13.87
-44 -15491-002 PLATE – Solenoid mounting 1 18-7409140 and up 33.58
-45 -484-373 RELAY – Power (24059) 2 18-7409140 and up 42.2
-46 -487-790 SWITCH – (110-S-73) 2 18-7409140 and up 20.1
-47 W23X1A1G-20 CIRCUIT PROTECTOR – (109-220-102) 1 18-7409140 and up 32.5
-48 15729-02 PANEL – Switch 1 18-7409140 and up NM!
-49 66696-00 AMMETER 1 18-7409140 and up NM!
-50 W23X1A1G-5 CIRCUIT PROTECTOR – (109-205-102), 5 amp 3 18-7409140 and up 43.12
-51 454-711 CIRCUIT PROTECTOR – (1648-004-06008), 60 amp 1 18-7409140 and up NM!
-52 17604-27 CABLE ASSEMBLY 1 18-7409140 and up NM!
-53 -487-907 SWITCH – (2GK54-73) 1 18-7409140 and up 10.85
-54 31506-06 BUS BAR 1 18-7409140 and up NM!
-55 80035-09 CABLE 1 18-7509580, 18-7509582 and up NM!
-56 -23969-003 NIPPLE – (MS25171-2-S) 3 18-7509580, 18-7509582 and up 7.5
-57 -23969-002 NIPPLE – (MS25171-1-S) 2 18-7509580, 18-7509582 and up 7.19

A – Used on PA-18 airplanes with serial numbers 18-665 to 18-3013 inclusive.
B – Used on PA-18 airplanes with serial numbers 18-665 to 18-1214 inclusive.
C – Used on PA-18 airplanes with serial numbers 18-1 to 18-664 inclusive and PA-18A airplanes with serial numbers 18-1262 to 18-3013 inclusive.
D – Used on PA-18 airplanes with serial numbers 18-1215 to 18-2849 inclusive and 18-2851 to 18-2856 inclusive.
E – Used on PA-18 airplanes with serial numbers 18-2850, 18-2857 and up.
J – Used on airplanes where wire assemblies have knife disconnects only.
K – Used on airplanes where wire assemblies have end terminals only.
L – Used on airplanes with serial numbers 18-1 to 18-3770 inclusive, 18-3772 to 3780 inclusive.
M – This part not included with switch panel assembly. If required, must be ordered separately.
N – See Figure 40B if 35 amp generator is installed.

When ordering, always specify part number, description, and serial number of aircraft

128
