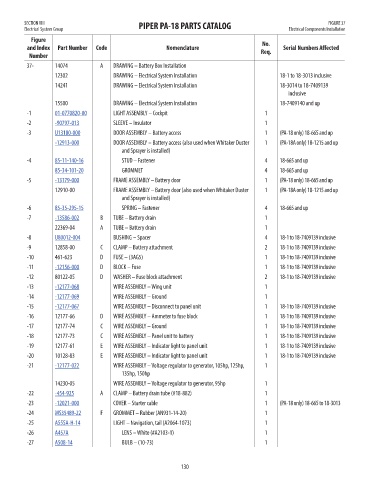

SECTION VIII PIPER PA-18 PARTS CATALOG FIGURE 37
Electrical System Group Electrical Components Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
37- 14074 A DRAWING – Battery Box Installation NM!
12302 DRAWING – Electrical System Installation 18-1 to 18-3013 inclusive NM!
14241 DRAWING – Electrical System Installation 18-3014 to 18-7409139 NM!
inclusive
15500 DRAWING – Electrical System Installation 18-7409140 and up NM!
-1 01-0770820-00 LIGHT ASSEMBLY – Cockpit 1 198.12
-2 -90797-013 SLEEVE – Insulator 1 0.09
-3 U13180-000 DOOR ASSEMBLY – Battery access 1 (PA-18 only) 18-665 and up 160.91
-12913-000 DOOR ASSEMBLY – Battery access (also used when Whitaker Duster 1 (PA-18A only) 18-1215 and up 166.63
and Sprayer is installed)
-4 85-11-140-16 STUD – Fastener 4 18-665 and up 1.16
85-34-101-20 GROMMET 4 18-665 and up 0.14
-5 -13179-000 FRAME ASSEMBLY – Battery door 1 (PA-18 only) 18-665 and up 244.94
12910-00 FRAME ASSEMBLY – Battery door (also used when Whitaker Duster 1 (PA-18A only) 18-1215 and up NM!
and Sprayer is installed)
-6 85-35-295-15 SPRING – Fastener 4 18-665 and up 1.26
-7 -13586-002 B TUBE – Battery drain 1 3.25
22369-04 A TUBE – Battery drain 1 NM!
-8 U80012-004 BUSHING – Spacer 4 18-1 to 18-7409139 inclusive 7.45
-9 12858-00 C CLAMP – Battery attachment 2 18-1 to 18-7409139 inclusive NM!
-10 461-623 D FUSE – (3AG5) 1 18-1 to 18-7409139 inclusive NM!
-11 -12156-000 D BLOCK – Fuse 1 18-1 to 18-7409139 inclusive 48.54
-12 80122-05 D WASHER – Fuse block attachment 2 18-1 to 18-7409139 inclusive NM!
-13 -12177-068 WIRE ASSEMBLY – Wing unit 1 13.87
-14 -12177-069 WIRE ASSEMBLY – Ground 1 7.5
-15 -12177-067 WIRE ASSEMBLY – Disconnect to panel unit 1 18-1 to 18-7409139 inclusive 8.85
-16 12177-66 D WIRE ASSEMBLY – Ammeter to fuse block 1 18-1 to 18-7409139 inclusive NM!
-17 12177-74 C WIRE ASSEMBLY – Ground 1 18-1 to 18-7409139 inclusive NM!
-18 12177-73 C WIRE ASSEMBLY – Panel unit to battery 1 18-1 to 18-7409139 inclusive NM!
-19 12177-61 E WIRE ASSEMBLY – Indicator light to panel unit 1 18-1 to 18-7409139 inclusive NM!
-20 10128-83 E WIRE ASSEMBLY – Indicator light to panel unit 1 18-1 to 18-7409139 inclusive NM!
-21 -12177-022 WIRE ASSEMBLY – Voltage regulator to generator, 105hp, 125hp, 1 20.47
135hp, 150hp
14230-05 WIRE ASSEMBLY – Voltage regulator to generator, 95hp 1 NM!
-22 -454-925 A CLAMP – Battery drain tube (#18-882) 1 13.34
-23 -12021-000 COVER – Starter cable 1 (PA-18 only) 18-665 to 18-3013 35.02
-24 MS35489-22 F GROMMET – Rubber (AN931-14-20) 1 2.34
-25 A555A-H-14 LIGHT – Navigation, tail (A2064-1073) 1 257.4
-26 A457A LENS – White (#A2103-1) 1 66.3
-27 A508-14 BULB – (10-73) 1 45.24

130
