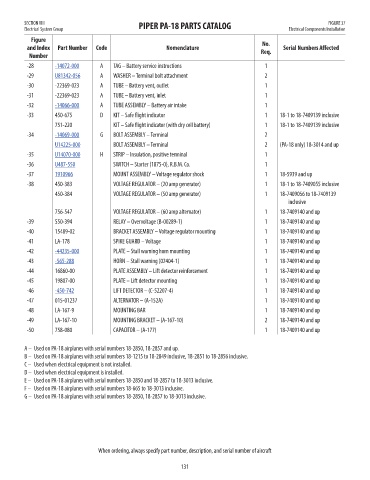

SECTION VIII PIPER PA-18 PARTS CATALOG FIGURE 37
Electrical System Group Electrical Components Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-28 -14072-000 A TAG – Battery service instructions 1 2.54
-29 U81342-056 A WASHER – Terminal bolt attachment 2 4.42
-30 -22369-023 A TUBE – Battery vent, outlet 1 NM!
-31 -22369-023 A TUBE – Battery vent, inlet 1 NM!
-32 -14066-000 A TUBE ASSEMBLY – Battery air intake 1 84.02
-33 450-675 D KIT – Safe flight indicator 1 18-1 to 18-7409139 inclusive NM!
751-220 KIT – Safe flight indicator (with dry cell battery) 1 18-1 to 18-7409139 inclusive NM!
-34 -14069-000 G BOLT ASSEMBLY – Terminal 2 43.56
U14225-000 BOLT ASSEMBLY – Terminal 2 (PA-18 only) 18-3014 and up 83.75
-35 U14070-000 H STRIP – Insulation, positive terminal 1 52.07
-36 U487-550 SWITCH – Starter (1875-0), R.B.M. Co. 1 65.84
-37 1910966 MOUNT ASSEMBLY – Voltage regulator shock 1 18-5939 and up 47.48
-38 450-383 VOLTAGE REGULATOR – (20 amp generator) 1 18-1 to 18-7409055 inclusive NM!
450-384 VOLTAGE REGULATOR – (50 amp generator) 1 18-7409056 to 18-7409139 NM!
inclusive
756-547 VOLTAGE REGULATOR – (60 amp alternator) 1 18-7409140 and up NM!
-39 550-394 RELAY – Overvoltage (B-00289-1) 1 18-7409140 and up NM!
-40 15489-02 BRACKET ASSEMBLY – Voltage regulator mounting 1 18-7409140 and up NM!
-41 LA-178 SPIKE GUARD – Voltage 1 18-7409140 and up NM!
-42 -44235-000 PLATE – Stall warning horn mounting 1 18-7409140 and up 58.63
-43 -565-288 HORN – Stall warning (02404-1) 1 18-7409140 and up 919.81
-44 16860-00 PLATE ASSEMBLY – Lift detector reinforcement 1 18-7409140 and up NM!
-45 19807-00 PLATE – Lift detector mounting 1 18-7409140 and up NM!
-46 -450-742 LIFT DETECTOR – (C-52207-4) 1 18-7409140 and up 2946.91
-47 015-01237 ALTERNATOR – (A-152A) 1 18-7409140 and up NM!
-48 LA-167-9 MOUNTING BAR 1 18-7409140 and up NM!
-49 LA-167-10 MOUNTING BRACKET – (A-167-10) 2 18-7409140 and up NM!
-50 758-080 CAPACITOR – (A-177) 1 18-7409140 and up NM!

A – Used on PA-18 airplanes with serial numbers 18-2850, 18-2857 and up.
B – Used on PA-18 airplanes with serial numbers 18-1215 to 18-2849 inclusive, 18-2851 to 18-2856 inclusive.
C – Used when electrical equipment is not installed.
D – Used when electrical equipment is installed.
E – Used on PA-18 airplanes with serial numbers 18-2850 and 18-2857 to 18-3013 inclusive.
F – Used on PA-18 airplanes with serial numbers 18-665 to 18-3013 inclusive.
G – Used on PA-18 airplanes with serial numbers 18-2850, 18-2857 to 18-3013 inclusive.

When ordering, always specify part number, description, and serial number of aircraft
