SECTION VIII PIPER PA-18 PARTS CATALOG FIGURE 39
Electrical System Group Wing Light and Strobe Light Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
39-1 01-0771105-02 LIGHT – Navigation, wing, red, LH 1 311.22
-2 W1284-R LENS – Red 1 81.9
-3 W1290-14 BULB 1 95.16
-4 01-0771105-01 LIGHT – Navigation, wing, green, RH 1 311.22
-5 W1284-G LENS – Green (#A1280-3) 1 81.9
-6 W1290-14 BULB – #1512 1 95.16
-7 U12560-000 BRACKET ASSEMBLY – Navigation light, wing 2 137.64
-8 44291-02 LENS – Strobe light 1 18-7509123 and up NM!
A402-R LENS – Strobe light – RED 1 18-7509123 and up 69.42
A402-W LENS – Strobe light – WHITE 1 18-7509123 and up 69.42
A402-R/W LENS – Strobe light – SPLIT RED/WHITE 1 18-7509123 and up 69.42
-9 01-0450685-00 CLAMP – Ring assembly 1 18-7509123 and up 21.84
-10 A469B FLASH TUBE 1 18-7509123 and up 188.76
-11 A467 GASKET 1 18-7509123 and up 16.38
-12 A413AHDA-CF POWER SUPPLY – (Suitable for up to 4 strobe lights) 1 18-7509123 and up NM!
-13 W23X1A1G-25 CIRCUIT PROTECTOR 1 18-7509123 and up 34.32
-14 -487-791 SWITCH – (110-S-73) 1 18-7509123 and up 15.36

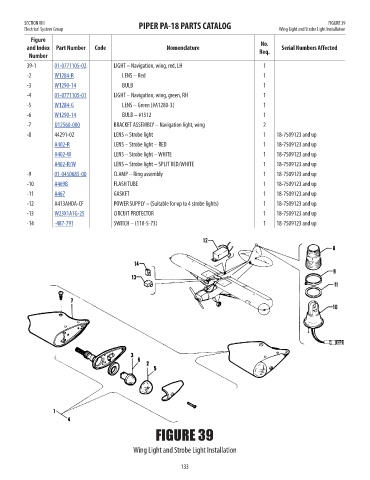

FIGURE 39

Wing Light and Strobe Light Installation

133
