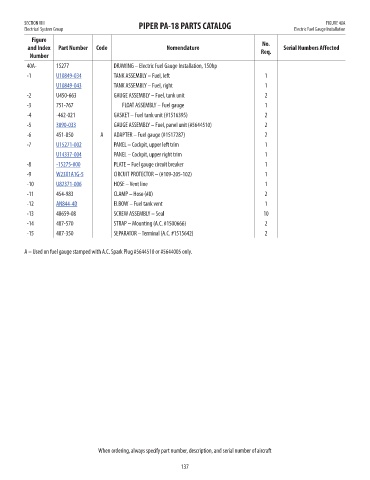

SECTION VIII PIPER PA-18 PARTS CATALOG FIGURE 40A
Electrical System Group Electric Fuel Gauge Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
40A- 15277 DRAWING – Electric Fuel Gauge Installation, 150hp NM!
-1 U10849-034 TANK ASSEMBLY – Fuel, left 1 2105.1
U10849-043 TANK ASSEMBLY – Fuel, right 1 2105.1
-2 U450-663 GAUGE ASSEMBLY – Fuel, tank unit 2 NM!
-3 751-767 FLOAT ASSEMBLY – Fuel gauge 1 NM!
-4 -462-021 GASKET – Fuel tank unit (#1516395) 2 NM!
-5 3090-033 GAUGE ASSEMBLY – Fuel, panel unit (#5644510) 2 237.42
-6 451-850 A ADAPTER – Fuel gauge (#1517287) 2 NM!
-7 U15271-002 PANEL – Cockpit, upper left trim 1 46.75
U14337-004 PANEL – Cockpit, upper right trim 1 143.33
-8 -15275-000 PLATE – Fuel gauge circuit breaker 1 27.81
-9 W23X1A1G-5 CIRCUIT PROTECTOR – (#109-205-102) 1 43.12
-10 U82371-006 HOSE – Vent line 1 29.79
-11 454-983 CLAMP – Hose (#8) 2 NM!
-12 AN844-4D ELBOW – Fuel tank vent 1 19.8
-13 48659-08 SCREW ASSEMBLY – Seal 10 NM!
-14 487-570 STRAP – Mounting (A.C. #1500666) 2 NM!
-15 487-350 SEPARATOR – Terminal (A.C. #1515642) 2 NM!

A – Used on fuel gauge stamped with A.C. Spark Plug #5644510 or #5644005 only.

When ordering, always specify part number, description, and serial number of aircraft

137
