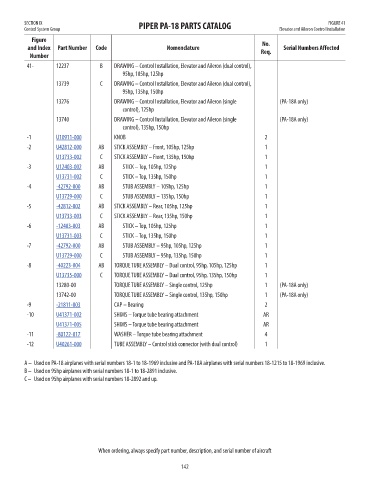

SECTION IX PIPER PA-18 PARTS CATALOG FIGURE 41
Control System Group Elevator and Aileron Control Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
41- 12237 B DRAWING – Control Installation, Elevator and Aileron (dual control), NM!
95hp, 105hp, 125hp
13739 C DRAWING – Control Installation, Elevator and Aileron (dual control), NM!
95hp, 135hp, 150hp
13276 DRAWING – Control Installation, Elevator and Aileron (single (PA-18A only) NM!
control), 125hp
13740 DRAWING – Control Installation, Elevator and Aileron (single (PA-18A only) NM!
control), 135hp, 150hp

-1 U10911-000 KNOB 2 12.44
-2 U42812-000 AB STICK ASSEMBLY – Front, 105hp, 125hp 1 566.04
U13733-002 C STICK ASSEMBLY – Front, 135hp, 150hp 1 570.41
-3 U12403-002 AB STICK – Top, 105hp, 125hp 1 274.5
U13731-002 C STICK – Top, 135hp, 150hp 1 217.35
-4 -42792-000 AB STUB ASSEMBLY – 105hp, 125hp 1 398.8
U13729-000 C STUB ASSEMBLY – 135hp, 150hp 1 441.41
-5 -42812-002 AB STICK ASSEMBLY – Rear, 105hp, 125hp 1 566.04
U13733-003 C STICK ASSEMBLY – Rear, 135hp, 150hp 1 580.21
-6 -12403-003 AB STICK – Top, 105hp, 125hp 1 142.45
U13731-003 C STICK – Top, 135hp, 150hp 1 190.79
-7 -42792-000 AB STUB ASSEMBLY – 95hp, 105hp, 125hp 1 398.8
U13729-000 C STUB ASSEMBLY – 95hp, 135hp, 150hp 1 441.41
-8 -40223-004 AB TORQUE TUBE ASSEMBLY – Dual control, 95hp, 105hp, 125hp 1 1317.74
U13735-000 C TORQUE TUBE ASSEMBLY – Dual control, 95hp, 135hp, 150hp 1 1048.97
13280-00 TORQUE TUBE ASSEMBLY – Single control, 125hp 1 (PA-18A only) NM!
13742-00 TORQUE TUBE ASSEMBLY – Single control, 135hp, 150hp 1 (PA-18A only) NM!
-9 -21811-003 CAP – Bearing 2 191.88
-10 U41371-002 SHIMS – Torque tube bearing attachment AR 3.99
U41371-005 SHIMS – Torque tube bearing attachment AR 11.92
-11 -80122-017 WASHER – Torque tube bearing attachment 4 6.71
-12 U40261-000 TUBE ASSEMBLY – Control stick connector (with dual control) 1 197.65

A – Used on PA-18 airplanes with serial numbers 18-1 to 18-1969 inclusive and PA-18A airplanes with serial numbers 18-1215 to 18-1969 inclusive.
B – Used on 95hp airplanes with serial numbers 18-1 to 18-2891 inclusive.
C – Used on 95hp airplanes with serial numbers 18-2892 and up.

When ordering, always specify part number, description, and serial number of aircraft

142
