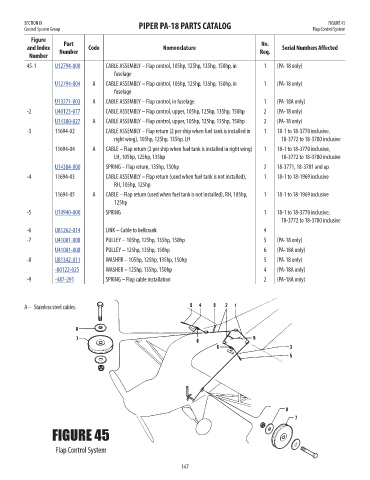

SECTION IX PIPER PA-18 PARTS CATALOG FIGURE 45
Control System Group Flap Control System
Figure
Part
No.
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
45-1 U12794-000 CABLE ASSEMBLY – Flap control, 105hp, 125hp, 135hp, 150hp, in 1 (PA-18 only) 140.43
fuselage
U12794-004 A CABLE ASSEMBLY – Flap control, 105hp, 125hp, 135hp, 150hp, in 1 (PA-18 only) 166.94
fuselage
U13271-003 A CABLE ASSEMBLY – Flap control, in fuselage 1 (PA-18A only) 401.75
-2 U40123-077 CABLE ASSEMBLY – Flap control, upper, 105hp, 125hp, 135hp, 150hp 2 (PA-18 only) 165.81
U14300-027 A CABLE ASSEMBLY – Flap control, upper, 105hp, 125hp, 135hp, 150hp 2 (PA-18 only) 191.06
-3 11694-02 CABLE ASSEMBLY – Flap return (2 per ship when fuel tank is installed in 1 18-1 to 18-3770 inclusive, NM!
right wing), 105hp, 125hp, 135hp, LH 18-3772 to 18-3780 inclusive
11694-04 A CABLE – Flap return (2 per ship when fuel tank is installed in right wing) 1 18-1 to 18-3770 inclusive, NM!
LH, 105hp, 125hp, 135hp 18-3772 to 18-3780 inclusive
U14384-000 SPRING – Flap return, 135hp, 150hp 2 18-3771, 18-3781 and up 27.34
-4 11694-03 CABLE ASSEMBLY – Flap return (used when fuel tank is not installed), 1 18-1 to 18-1969 inclusive NM!
RH, 105hp, 125hp
11694-05 A CABLE – Flap return (used when fuel tank is not installed), RH, 105hp, 1 18-1 to 18-1969 inclusive NM!
125hp
-5 U10940-000 SPRING 1 18-1 to 18-3770 inclusive, 33.57
18-3772 to 18-3780 inclusive
-6 U81262-014 LINK – Cable to bellcrank 4 5.35
-7 U41001-008 PULLEY – 105hp, 125hp, 135hp, 150hp 5 (PA-18 only) 63.56
U41001-008 PULLEY – 125hp, 135hp, 150hp 6 (PA-18A only) 63.56
-8 U81342-011 WASHER – 105hp, 125hp, 135hp, 150hp 5 (PA-18 only) 7.06
-80122-025 WASHER – 125hp, 135hp, 150hp 4 (PA-18A only) 6.92
-9 -487-291 SPRING – Flap cable installation 2 (PA-18A only) 33.2

A – Stainless steel cables.

FIGURE 45

Flap Control System

147
