SECTION IX PIPER PA-18 PARTS CATALOG FIGURE 46
Control System Group Adjustment Stabilizer Control System
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
46- 13255 DRAWING – Stabilizer Adjustment Cable Installation (PA-18A only) NM!
12545 B DRAWING – Stabilizer Adjustment Cable Installation NM!
14486 DRAWING – Stabilizer Adjustment Cable Installation (PA-18 only) 18-3771, 18-3781 NM!
and up
-1 U41671-013 CABLE ASSEMBLY – Stabilizer adjustment 1 18-1 to 18-548 inclusive 309.95
U41671-017 CABLE ASSEMBLY – Stabilizer adjustment 1 18-549 and up 328.85
U41671-015 A CABLE – Stabilizer adjustment, 105hp 1 312.04
U41671-019 A CABLE – Stabilizer adjustment, 125hp, 135hp, 150hp 1 344.43

-2 U42664-003 WIRE – Stabilizer indicator 1 26.19
-3 U43001-000 PULLEY – Stabilizer adjustment control cable, 1 inch 2 18-549 and up 18.18
-4 U80122-018 WASHER – Stabilizer adjustment pulley 4 18-549 and up 2.16
-5 12695-00 BLOCK – Rubbing, stabilizer control cable, rear 1 18-1 to 18-548 inclusive NM!
-6 U40721-000 BLOCK – Rubbing, stabilizer control cable, front 1 44.83
-7 U40731-000 PLATE – Rub (2 per ship 1950 model) 1 11.06
-8 U42911-000 FAIRLEAD – Stabilizer indicator wire 1 18-549 and up 13.29
-9 U80012-004 BUSHING – Insert 2 18-549 and up 7.45

A – Stainless steel cables used when floats installed on airplanes models PA-18 and PA-18A 105hp, 125hp, 135hp, 150hp.
B – Used on PA-18 airplanes with serial numbers 18-1 to 18-3770 inclusive, 18-3772 to 18-3780 inclusive.

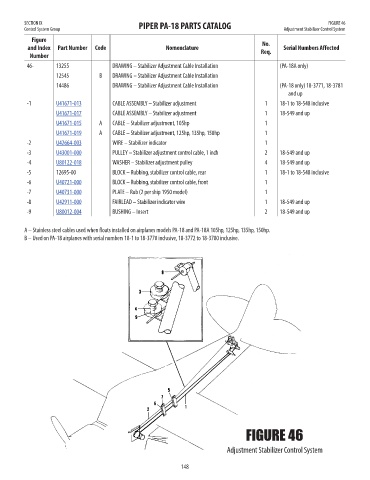

FIGURE 46

Adjustment Stabilizer Control System
