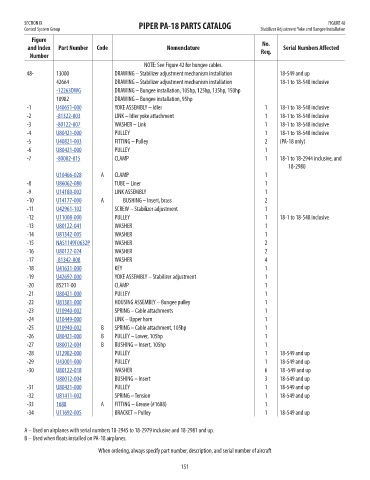

SECTION IX PIPER PA-18 PARTS CATALOG FIGURE 48
Control System Group Stabilizer Adjustment Yoke and Bungee Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
NOTE: See Figure 42 for bungee cables. x
48- 13000 DRAWING – Stabilizer adjustment mechanism installation 18-549 and up NM!
42664 DRAWING – Stabilizer adjustment mechanism installation 18-1 to 18-548 inclusive NM!
-12263DWG DRAWING – Bungee installation, 105hp, 125hp, 135hp, 150hp 39.58
10982 DRAWING – Bungee installation, 95hp NM!
-1 U40651-000 YOKE ASSEMBLY – Idler 1 18-1 to 18-548 inclusive 42.97
-2 -81322-003 LINK – Idler yoke attachment 1 18-1 to 18-548 inclusive 14.25
-3 -80122-007 WASHER – Link 1 18-1 to 18-548 inclusive 6.11
-4 U80421-000 PULLEY 1 18-1 to 18-548 inclusive 12.37
-5 U40821-003 FITTING – Pulley 2 (PA-18 only) 12.84
-6 U80421-000 PULLEY 1 12.37
-7 -80002-015 CLAMP 1 18-1 to 18-2944 inclusive, and 21.5
18-2980
U10466-028 A CLAMP 1 17.91
-8 U86062-080 TUBE – Liner 1 129.57
-9 U14180-002 LINK ASSEMBLY 1 311.56
-10 U14177-000 A BUSHING – Insert, brass 2 22.82
-11 U42961-102 SCREW – Stabilizer adjustment 1 112.38
-12 U11008-000 PULLEY 1 18-1 to 18-548 inclusive 186.92
-13 U80122-041 WASHER 1 13.35
-14 U81342-005 WASHER 1 9.3
-15 NAS1149F0632P WASHER 2 0.06
-16 U80122-024 WASHER 2 4.18
-17 -81342-008 WASHER 4 5.21
-18 U41631-000 KEY 1 16.1
-19 U42692-000 YOKE ASSEMBLY – Stabilizer adjustment 1 289.01
-20 85211-00 CLAMP 1 NM!
-21 U80421-000 PULLEY 1 12.37
-22 U81381-000 HOUSING ASSEMBLY – Bungee pulley 1 79.4
-23 U10940-002 SPRING – Cable attachments 1 65.71
-24 U10449-000 LINK – Upper horn 1 34.19
-25 U10940-002 B SPRING – Cable attachment, 105hp 1 65.71
-26 U80421-000 B PULLEY – Lower, 105hp 1 12.37
-27 U80012-004 B BUSHING – Insert, 105hp 1 7.45
-28 U12982-000 PULLEY 1 18-549 and up 140.67
-29 U43001-000 PULLEY 1 18-549 and up 18.18
-30 U80122-018 WASHER 6 18 -549 and up 2.16
U80012-004 BUSHING – Insert 3 18-549 and up 7.45
-31 U80421-000 PULLEY 1 18-549 and up 12.37
-32 U81411-002 SPRING – Tension 1 18-549 and up 40.44
-33 1688 A FITTING – Grease (#1688) 1 2.26
-34 U11692-005 BRACKET – Pulley 1 18-549 and up 18.39

A – Used on airplanes with serial numbers 18-2945 to 18-2979 inclusive and 18-2981 and up.
B – Used when floats installed on PA-18 airplanes.
When ordering, always specify part number, description, and serial number of aircraft

151
