SECTION IX PIPER PA-18 PARTS CATALOG FIGURE 47
Control System Group Stabilizer Adjustment Crank Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
47- 12545 DRAWING – Stabilizer Adjustment Crank Installation (Revision letter 18-1 to 18-548 inclusive NM!
AF, date 8/4/49)
12999 DRAWING – Stabilizer Adjustment Crank Mechanism Installation 18-549 and up NM!
-1 U41111-000 CRANK ASSEMBLY 1 126.81
-2 U41101-000 PLATE – Escutcheon 1 35.56
-3 U42891-000 SPRING – Indicator wire 1 7.53
-4 U41121-000 INDICATOR ASSEMBLY 1 34.71
-5 U10936-000BK PLATE – Indicator cover, black 1 72.26

U10936-000RED PLATE – Indicator cover, red 1 72.26
-6 U41151-000 SPRING – Stabilizer crank escutcheon plate 1 9.64
-7 U12983-000 PULLEY 1 18-549 and up 69.18
U10080-000 PULLEY 1 18-1 to 18-548 inclusive 159.44
-8 U12105-000 PIN – Crankshaft 1 45.01
-9 -81761-011 PIN – Crank locking 1 10.08
-10 -81761-004 PIN – Crank pulley locking 1 12.4
-11 U80122-018 WASHER – Spacer 2 18-549 and up 2.16
-12 U80421-000 PULLEY 1 18-549 and up 12.37
-13 U80012-004 BUSHING – Insert 1 18-549 and up 7.45

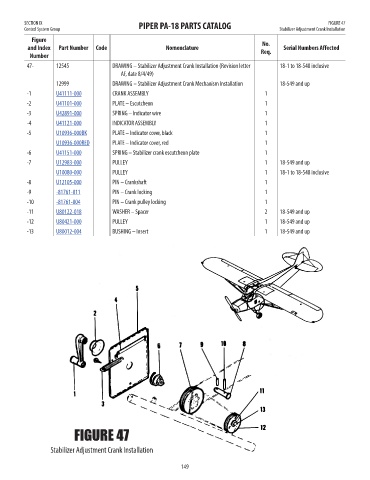

FIGURE 47

Stabilizer Adjustment Crank Installation

149
