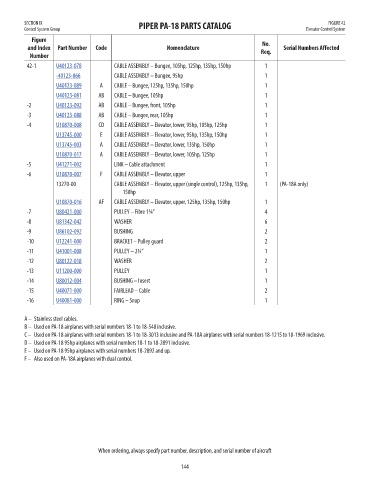

SECTION IX PIPER PA-18 PARTS CATALOG FIGURE 42
Control System Group Elevator Control System
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
42-1 U40123-078 CABLE ASSEMBLY – Bungee, 105hp, 125hp, 135hp, 150hp 1 43.92
-40123-066 CABLE ASSEMBLY – Bungee, 95hp 1 32.75
U40123-089 A CABLE – Bungee, 125hp, 135hp, 150hp 1 69.84
U40123-081 AB CABLE – Bungee, 105hp 1 57.73
-2 U40123-092 AB CABLE – Bungee, front, 105hp 1 92.34
-3 U40123-088 AB CABLE – Bungee, rear, 105hp 1 75.4
-4 U10870-008 CD CABLE ASSEMBLY – Elevator, lower, 95hp, 105hp, 125hp 1 156.01
U13745-000 E CABLE ASSEMBLY – Elevator, lower, 95hp, 135hp, 150hp 1 238.35
U13745-003 A CABLE ASSEMBLY – Elevator, lower, 135hp, 150hp 1 280.26
U10870-017 A CABLE ASSEMBLY – Elevator, lower, 105hp, 125hp 1 188.83
-5 U41271-002 LINK – Cable attachment 1 18.65
-6 U10870-007 F CABLE ASSEMBLY – Elevator, upper 1 179.14
13270-00 CABLE ASSEMBLY – Elevator, upper (single control), 125hp, 135hp, 1 (PA-18A only) NM!
150hp
U10870-016 AF CABLE ASSEMBLY – Elevator, upper, 125hp, 135hp, 150hp 1 177.25
-7 U80421-000 PULLEY – Fibre 1¾” 4 12.37
-8 U81342-042 WASHER 6 3.14
-9 U86102-092 BUSHING 2 13.26
-10 U12241-000 BRACKET – Pulley guard 2 32.51
-11 U41001-008 PULLEY – 2¾” 1 63.56
-12 U80122-018 WASHER 2 2.16
-13 U11200-000 PULLEY 1 15.2
-14 U80012-004 BUSHING – Insert 1 7.45
-15 U40071-000 FAIRLEAD – Cable 2 1.32
-16 U40081-000 RING – Snap 1 0.49

A – Stainless steel cables.
B – Used on PA-18 airplanes with serial numbers 18-1 to 18-548 inclusive.
C – Used on PA-18 airplanes with serial numbers 18-1 to 18-3013 inclusive and PA-18A airplanes with serial numbers 18-1215 to 18-1969 inclusive.
D – Used on PA-18 95hp airplanes with serial numbers 18-1 to 18-2891 inclusive.
E – Used on PA-18 95hp airplanes with serial numbers 18-2892 and up.
F – Also used on PA-18A airplanes with dual control.

When ordering, always specify part number, description, and serial number of aircraft

144
