SECTION IX PIPER PA-18 PARTS CATALOG FIGURE 44
Control System Group Rudder Control System
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
44-1 -10865-000 CABLE ASSEMBLY – Rudder 2 217.5
U10865-005 A CABLE ASSEMBLY – Rudder 2 235.12
-2 U80421-000 PULLEY 2 12.37
-3 U80122-018 WASHER 4 2.16
-4 U80012-004 BUSHING – Insert 2 7.45
-5 U40071-000 FAIRLEAD – Cable, segment 8 1.32
-6 U40081-000 RING – Snap 4 0.49
A – Stainless steel cables.

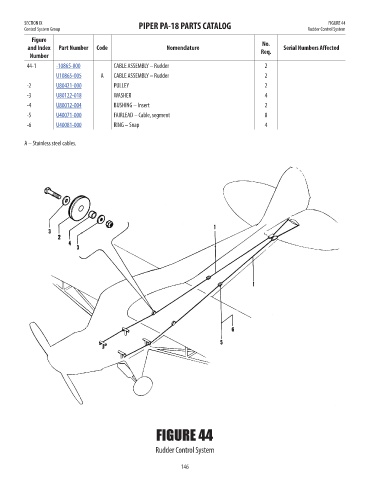

FIGURE 44
Rudder Control System
146
