P. 155

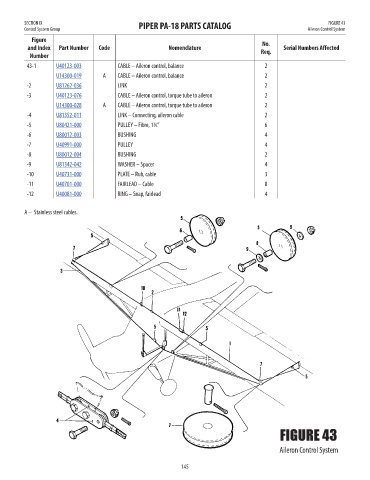

SECTION IX PIPER PA-18 PARTS CATALOG FIGURE 43
Control System Group Aileron Control System
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
43-1 U40123-003 CABLE – Aileron control, balance 2 138.52
U14300-019 A CABLE – Aileron control, balance 2 182.83
-2 U81262-036 LINK 2 18.39
-3 U40123-076 CABLE – Aileron control, torque tube to aileron 2 155.29
U14300-028 A CABLE – Aileron control, torque tube to aileron 2 169.2
-4 U81352-011 LINK – Connecting, aileron cable 2 10.44
-5 U80421-000 PULLEY – Fibre, 1¾” 6 12.37
-6 U80012-003 BUSHING 4 5.95
-7 U40991-000 PULLEY 4 18.31
-8 U80012-004 BUSHING 2 7.45
-9 U81342-042 WASHER – Spacer 4 3.14
-10 U40731-000 PLATE – Rub, cable 3 11.06
-11 U40701-000 FAIRLEAD – Cable 8 1.3
-12 U40081-000 RING – Snap, fairlead 4 0.49
A – Stainless steel cables.
FIGURE 43
Aileron Control System
145
