Page 150 - Piper PA-18 Super Cub Interactive Parts Catalog

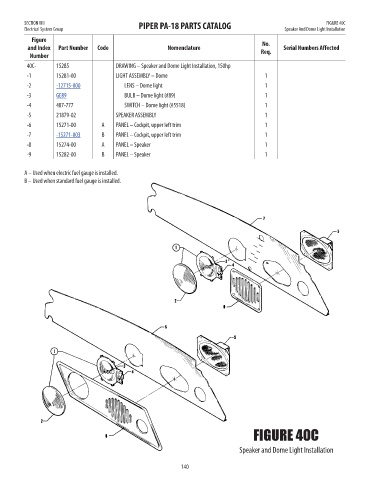

SECTION VIII PIPER PA-18 PARTS CATALOG FIGURE 40C
Electrical System Group Speaker And Dome Light Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
40C- 15285 DRAWING – Speaker and Dome Light Installation, 150hp NM!
-1 15281-00 LIGHT ASSEMBLY – Dome 1 NM!
-2 -12715-000 LENS – Dome light 1 158.22
-3 GE89 BULB – Dome light (#89) 1 2.42
-4 487-777 SWITCH – Dome light (#5518) 1 NM!
-5 21879-02 SPEAKER ASSEMBLY 1 NM!
-6 15271-00 A PANEL – Cockpit, upper left trim 1 NM!
-7 -15271-003 B PANEL – Cockpit, upper left trim 1 148.2
-8 15274-00 A PANEL – Speaker 1 NM!
-9 15282-00 B PANEL – Speaker 1 NM!

A – Used when electric fuel gauge is installed.
B – Used when standard fuel gauge is installed.

FIGURE 40C

Speaker and Dome Light Installation

140
