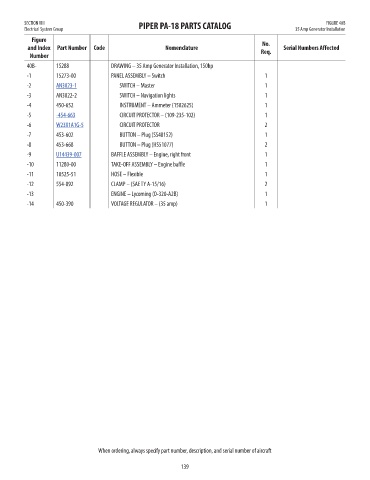

SECTION VIII PIPER PA-18 PARTS CATALOG FIGURE 40B
Electrical System Group 35 Amp Generator Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
40B- 15288 DRAWING – 35 Amp Generator Installation, 150hp NM!
-1 15273-00 PANEL ASSEMBLY – Switch 1 NM!
-2 AN3023-1 SWITCH – Master 1 400
-3 AN3022-2 SWITCH – Navigation lights 1 NM!
-4 450-652 INSTRUMENT – Ammeter (1502625) 1 NM!
-5 -454-663 CIRCUIT PROTECTOR – (109-235-102) 1 39
-6 W23X1A1G-5 CIRCUIT PROTECTOR 2 43.12
-7 453-602 BUTTON – Plug (SS48152) 1 NM!
-8 453-668 BUTTON – Plug (HS51077) 2 NM!
-9 U14439-007 BAFFLE ASSEMBLY – Engine, right front 1 279.43
-10 11280-00 TAKE-OFF ASSEMBLY – Engine baffle 1 NM!
-11 10525-51 HOSE – Flexible 1 NM!
-12 554-892 CLAMP – (SAE TY A-15/16) 2 NM!
-13 ENGINE – Lycoming (O-320-A2B) 1 x
-14 450-390 VOLTAGE REGULATOR – (35 amp) 1 NM!
When ordering, always specify part number, description, and serial number of aircraft
139
