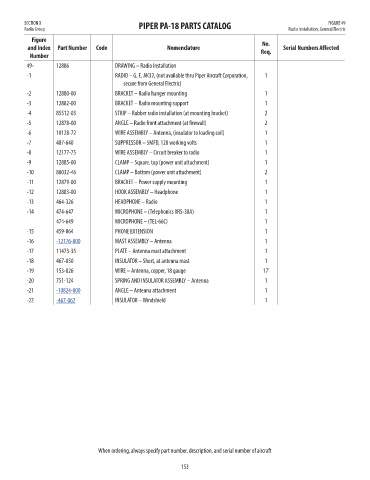

SECTION X PIPER PA-18 PARTS CATALOG FIGURE 49
Radio Group Radio Installation, General Electric
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
49- 12886 DRAWING – Radio Installation NM!
-1 RADIO – G. E. AK32, (not available thru Piper Aircraft Corporation, 1 x
secure from General Electric)
-2 12880-00 BRACKET – Radio hanger mounting 1 NM!
-3 12882-00 BRACKET – Radio mounting support 1 NM!
-4 85512-03 STRIP – Rubber radio installation (at mounting bracket) 2 NM!
-5 12878-00 ANGLE – Radio front attachment (at firewall) 2 NM!
-6 10128-72 WIRE ASSEMBLY – Antenna, (insulator to loading coil) 1 NM!
-7 487-640 SUPPRESSOR – 5MFD, 120 working volts 1 NM!

-8 12177-75 WIRE ASSEMBLY – Circuit breaker to radio 1 NM!
-9 12885-00 CLAMP – Square, top (power unit attachment) 1 NM!
-10 80032-46 CLAMP – Bottom (power unit attachment) 2 NM!
-11 12879-00 BRACKET – Power supply mounting 1 NM!
-12 12883-00 HOOK ASSEMBLY – Headphone 1 NM!
-13 464-326 HEADPHONE – Radio 1 NM!
-14 474-647 MICROPHONE – (Telephonics #RS-38A) 1 NM!
474-649 MICROPHONE – (TEL-66C) 1 NM!
-15 459-864 PHONE EXTENSION 1 NM!
-16 -12176-000 MAST ASSEMBLY – Antenna 1 39.19
-17 11473-35 PLATE – Antenna mast attachment 1 NM!
-18 467-050 INSULATOR – Short, at antenna mast 1 NM!
-19 153-026 WIRE – Antenna, copper, 18 gauge 17’ NM!
-20 751-124 SPRING AND INSULATOR ASSEMBLY – Antenna 1 NM!
-21 -10824-000 ANGLE – Antenna attachment 1 8.33
-22 -467-062 INSULATOR – Windshield 1 3.82

When ordering, always specify part number, description, and serial number of aircraft

153
