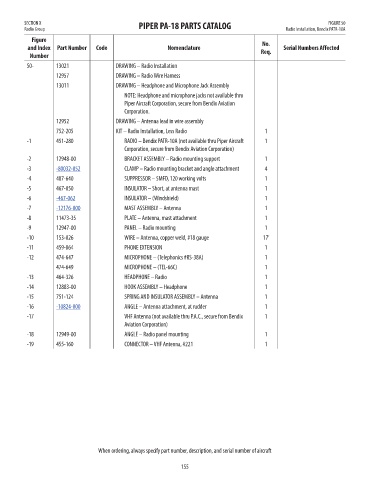

SECTION X PIPER PA-18 PARTS CATALOG FIGURE 50
Radio Group Radio Installation, Bendix PATR-10A
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
50- 13021 DRAWING – Radio Installation NM!
12957 DRAWING – Radio Wire Harness NM!
13011 DRAWING – Headphone and Microphone Jack Assembly NM!
NOTE: Headphone and microphone jacks not available thru x
Piper Aircraft Corporation, secure from Bendix Aviation
Corporation.
12952 DRAWING – Antenna lead in wire assembly NM!
752-205 KIT – Radio Installation, Less Radio 1 NM!
-1 451-280 RADIO – Bendix PATR-10A (not available thru Piper Aircraft 1 NM!
Corporation, secure from Bendix Aviation Corporation)
-2 12948-00 BRACKET ASSEMBLY – Radio mounting support 1 NM!
-3 -80032-052 CLAMP – Radio mounting bracket and angle attachment 4 22.45
-4 487-640 SUPPRESSOR – 5MFD, 120 working volts 1 NM!
-5 467-050 INSULATOR – Short, at antenna mast 1 NM!
-6 -467-062 INSULATOR – (Windshield) 1 3.82
-7 -12176-000 MAST ASSEMBLY – Antenna 1 39.19
-8 11473-35 PLATE – Antenna, mast attachment 1 NM!
-9 12947-00 PANEL – Radio mounting 1 NM!
-10 153-026 WIRE – Antenna, copper weld, #18 gauge 17’ NM!
-11 459-864 PHONE EXTENSION 1 NM!
-12 474-647 MICROPHONE – (Telephonics #RS-38A) 1 NM!
474-649 MICROPHONE – (TEL-66C) 1 NM!
-13 464-326 HEADPHONE – Radio 1 NM!
-14 12883-00 HOOK ASSEMBLY – Headphone 1 NM!
-15 751-124 SPRING AND INSULATOR ASSEMBLY – Antenna 1 NM!
-16 -10824-000 ANGLE – Antenna attachment, at rudder 1 8.33
-17 VHF Antenna (not available thru P.A.C., secure from Bendix 1 x
Aviation Corporation)
-18 12949-00 ANGLE – Radio panel mounting 1 NM!
-19 455-160 CONNECTOR – VHF Antenna, #221 1 NM!
When ordering, always specify part number, description, and serial number of aircraft
155
