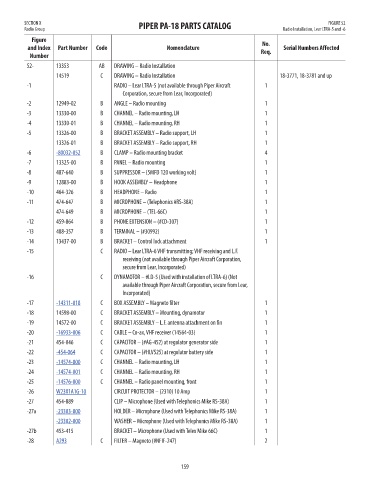

SECTION X PIPER PA-18 PARTS CATALOG FIGURE 52
Radio Group Radio Installation, Lear LTRA-5 and -6
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
52- 13353 AB DRAWING – Radio Installation NM!
14519 C DRAWING – Radio Installation 18-3771, 18-3781 and up NM!
-1 RADIO – Lear LTRA-5 (not available through Piper Aircraft 1 x
Corporation, secure from Lear, Incorporated)
-2 12949-02 B ANGLE – Radio mounting 1 NM!
-3 13330-00 B CHANNEL – Radio mounting, LH 1 NM!
-4 13330-01 B CHANNEL – Radio mounting, RH 1 NM!
-5 13326-00 B BRACKET ASSEMBLY – Radio support, LH 1 NM!

13326-01 B BRACKET ASSEMBLY – Radio support, RH 1 NM!
-6 -80032-052 B CLAMP – Radio mounting bracket 4 22.45
-7 13325-00 B PANEL – Radio mounting 1 NM!
-8 487-640 B SUPPRESSOR – (5MFD 120 working volt) 1 NM!
-9 12883-00 B HOOK ASSEMBLY – Headphone 1 NM!
-10 464-326 B HEADPHONE – Radio 1 NM!
-11 474-647 B MICROPHONE – (Telephonics #RS-38A) 1 NM!
474-649 B MICROPHONE – (TEL-66C) 1 NM!
-12 459-864 B PHONE EXTENSION – (#CD-307) 1 NM!
-13 488-357 B TERMINAL – (#30992) 1 NM!
-14 13437-00 B BRACKET – Control lock attachment 1 NM!
-15 C RADIO – Lear LTRA-6 VHF transmitting; VHF receiving and L.F. x
receiving (not available through Piper Aircraft Corporation,
secure from Lear, Incorporated)
-16 C DYNAMOTOR – #LD-5 (Used with installation of LTRA-6) (Not x
available through Piper Aircraft Corporation, secure from Lear,
Incorporated)
-17 -14311-018 C BOX ASSEMBLY – Magneto filter 1 658.19
-18 14598-00 C BRACKET ASSEMBLY – Mounting, dynamotor 1 NM!
-19 14572-00 C BRACKET ASSEMBLY – L.F. antenna attachment on fin 1 NM!
-20 -16933-006 C CABLE – Co-ax, VHF receiver (14564-03) 1 507.59
-21 454-046 C CAPACITOR – (#AG-452) at regulator generator side 1 NM!
-22 -454-064 C CAPACITOR – (#HLV525) at regulator battery side 1 44.7
-23 -14574-000 C CHANNEL – Radio mounting, LH 1 48.67
-24 -14574-001 C CHANNEL – Radio mounting, RH 1 49.61
-25 -14576-000 C CHANNEL – Radio panel mounting, front 1 71.2
-26 W23X1A1G-10 CIRCUIT PROTECTOR – (2310) 10 Amp 1 48.4
-27 454-889 CLIP – Microphone (Used with Telephonics Mike RS-38A) 1 NM!
-27a -23303-000 HOLDER – Microphone (Used with Telephonics Mike RS-38A) 1 1.79
-23302-000 WASHER – Microphone (Used with Telephonics Mike RS-38A) 1 4.45
-27b 453-415 BRACKET – Microphone (Used with Telex Mike 66C) 1 NM!
-28 A293 C FILTER – Magneto (#NFIF-247) 2 190.14

159
