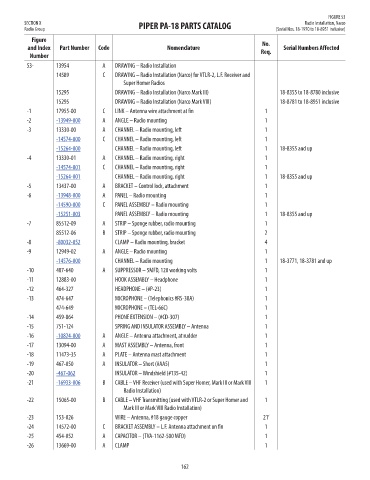

FIGURE 53
SECTION X PIPER PA-18 PARTS CATALOG Radio Installation, Narco
Radio Group (Serial Nos. 18-1970 to 18-8951 inclusive)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
53- 13954 A DRAWING – Radio Installation NM!
14589 C DRAWING – Radio Installation (Narco) for VTLR-2, L.F. Receiver and NM!
Super Homer Radios
15295 DRAWING – Radio Installation (Narco Mark III) 18-8355 to 18-8780 inclusive NM!
15295 DRAWING – Radio Installation (Narco Mark VIII) 18-8781 to 18-8951 inclusive NM!
-1 17955-00 C LINK – Antenna wire attachment at fin 1 NM!
-2 -13949-000 A ANGLE – Radio mounting 1 42.63
-3 13330-00 A CHANNEL – Radio mounting, left 1 NM!
-14574-000 C CHANNEL – Radio mounting, left 1 48.67
-15264-000 CHANNEL – Radio mounting, left 1 18-8355 and up 83.21
-4 13330-01 A CHANNEL – Radio mounting, right 1 NM!
-14574-001 C CHANNEL – Radio mounting, right 1 49.61
-15264-001 CHANNEL – Radio mounting, right 1 18-8355 and up 83.21
-5 13437-00 A BRACKET – Control lock, attachment 1 NM!
-6 -13948-000 A PANEL – Radio mounting 1 64.81
-14590-000 C PANEL ASSEMBLY – Radio mounting 1 295.08
-15251-003 PANEL ASSEMBLY – Radio mounting 1 18-8355 and up 86
-7 85512-09 A STRIP – Sponge rubber, radio mounting 1 NM!
85512-06 B STRIP – Sponge rubber, radio mounting 2 NM!
-8 -80032-052 CLAMP – Radio mounting, bracket 4 22.45
-9 12949-02 A ANGLE – Radio mounting 1 NM!
-14576-000 CHANNEL – Radio mounting 1 18-3771, 18-3781 and up 71.2
-10 487-640 A SUPPRESSOR – 5MFD, 120 working volts 1 NM!
-11 12883-00 HOOK ASSEMBLY – Headphone 1 NM!
-12 464-327 HEADPHONE – (#P-23) 1 NM!
-13 474-647 MICROPHONE – (Telephonics #RS-38A) 1 NM!
474-649 MICROPHONE – (TEL-66C) 1 NM!
-14 459-864 PHONE EXTENSION – (#CD-307) 1 NM!
-15 751-124 SPRING AND INSULATOR ASSEMBLY – Antenna 1 NM!
-16 -10824-000 A ANGLE – Antenna attachment, at rudder 1 8.33
-17 13094-00 A MAST ASSEMBLY – Antenna, front 1 NM!
-18 11473-35 A PLATE – Antenna mast attachment 1 NM!
-19 467-050 A INSULATOR – Short (#AA5) 1 NM!
-20 -467-062 INSULATOR – Windshield (#135-42) 1 3.82
-21 -16933-006 B CABLE – VHF Receiver (used with Super Homer, Mark III or Mark VIII 1 507.59
Radio Installation)
-22 15065-00 B CABLE – VHF Transmitting (used with VTLR-2 or Super Homer and 1 NM!
Mark III or Mark VIII Radio Installation)
-23 153-026 WIRE – Antenna, #18 gauge copper 21’ NM!
-24 14572-00 C BRACKET ASSEMBLY – L.F. Antenna attachment on fin 1 NM!
-25 454-052 A CAPACITOR – (TVA-1162-500 MFD) 1 NM!
-26 13669-00 A CLAMP 1 NM!
