Page 175 - Piper PA-18 Super Cub Interactive Parts Catalog

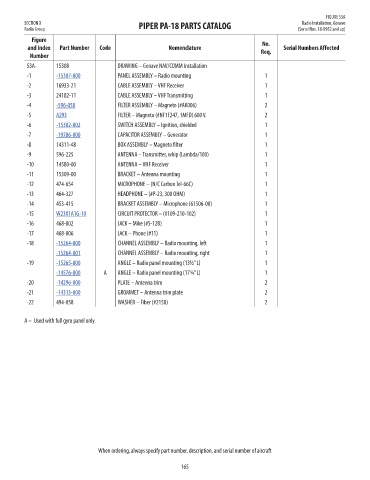

FIGURE 53A
SECTION X PIPER PA-18 PARTS CATALOG Radio Installation, Genave
Radio Group (Serial Nos. 18-8952 and up)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
53A- 15308 DRAWING – Genave NAV/COMM Installation NM!
-1 -15307-000 PANEL ASSEMBLY – Radio mounting 1 86.8
-2 16933-21 CABLE ASSEMBLY – VHF Receiver 1 NM!
-3 24182-11 CABLE ASSEMBLY – VHF Transmitting 1 NM!
-4 -596-058 FILTER ASSEMBLY – Magneto (#AK006) 2 310.99
-5 A293 FILTER – Magneto (#NF1F247, 1MFD) 600 V. 2 190.14
-6 -15302-002 SWITCH ASSEMBLY – Ignition, shielded 1 565.04
-7 -19286-000 CAPACITOR ASSEMBLY – Generator 1 34.88
-8 14311-48 BOX ASSEMBLY – Magneto filter 1 NM!
-9 596-225 ANTENNA – Transmitter, whip (Lambda/100) 1 NM!
-10 14580-00 ANTENNA – VHF Receiver 1 NM!
-11 15309-00 BRACKET – Antenna mounting 1 NM!
-12 474-654 MICROPHONE – (N/C Carbon Tel-66C) 1 NM!
-13 464-327 HEADPHONE – (#P-23, 300 OHM) 1 NM!
-14 453-415 BRACKET ASSEMBLY – Microphone (61506-00) 1 NM!
-15 W23X1A1G-10 CIRCUIT PROTECTOR – (#109-210-102) 1 48.4
-16 468-002 JACK – Mike (#S-12B) 1 NM!
-17 468-006 JACK – Phone (#11) 1 NM!
-18 -15264-000 CHANNEL ASSEMBLY – Radio mounting, left 1 83.21
-15264-001 CHANNEL ASSEMBLY – Radio mounting, right 1 83.21
-19 -15265-000 ANGLE – Radio panel mounting (13½” L) 1 88.17
-14576-000 A ANGLE – Radio panel mounting (17¾” L) 1 71.2
-20 -14296-000 PLATE – Antenna trim 2 10.05

-21 -14313-000 GROMMET – Antenna trim plate 2 16.73
-22 494-058 WASHER – Fiber (#2158) 2 NM!

A – Used with full gyro panel only.

When ordering, always specify part number, description, and serial number of aircraft

165
