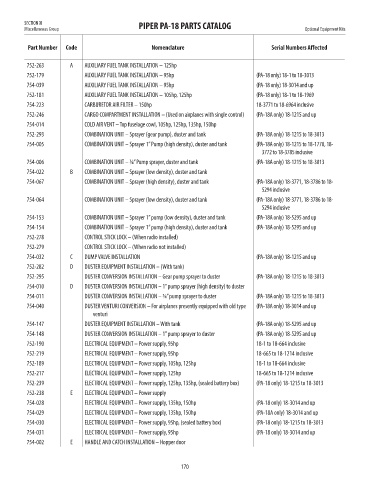

SECTION XI PIPER PA-18 PARTS CATALOG
Miscellaneous Group Optional Equipment Kits

Part Number Code Nomenclature Serial Numbers Affected Price

752-263 A AUXILIARY FUEL TANK INSTALLATION – 125hp NM!
752-179 AUXILIARY FUEL TANK INSTALLATION – 95hp (PA-18 only) 18-1 to 18-3013 NM!
754-039 AUXILIARY FUEL TANK INSTALLATION – 95hp (PA-18 only) 18-3014 and up NM!
752-181 AUXILIARY FUEL TANK INSTALLATION – 105hp, 125hp (PA-18 only) 18-1 to 18-1969 NM!
754-223 CARBURETOR AIR FILTER – 150hp 18-3771 to 18-6964 inclusive NM!
752-246 CARGO COMPARTMENT INSTALLATION – (Used on airplanes with single control) (PA-18A only) 18-1215 and up NM!
754-014 COLD AIR VENT – Top fuselage cowl, 105hp, 125hp, 135hp, 150hp NM!
752-293 COMBINATION UNIT – Sprayer (gear pump), duster and tank (PA-18A only) 18-1215 to 18-3013 NM!
754-005 COMBINATION UNIT – Sprayer 1” Pump (high density), duster and tank (PA-18A only) 18-1215 to 18-1770, 18- NM!
3772 to 18-3785 inclusive
754-006 COMBINATION UNIT – ¾” Pump sprayer, duster and tank (PA-18A only) 18-1215 to 18-3013 NM!

754-022 B COMBINATION UNIT – Sprayer (low density), duster and tank NM!
754-067 COMBINATION UNIT – Sprayer (high density), duster and tank (PA-18A only) 18-3771, 18-3786 to 18- NM!
5294 inclusive
754-064 COMBINATION UNIT – Sprayer (low density), duster and tank (PA-18A only) 18-3771, 18-3786 to 18- NM!
5294 inclusive
754-153 COMBINATION UNIT – Sprayer 1” pump (low density), duster and tank (PA-18A only) 18-5295 and up NM!
754-154 COMBINATION UNIT – Sprayer 1” pump (high density), duster and tank (PA-18A only) 18-5295 and up NM!
752-278 CONTROL STICK LOCK – (When radio installed) NM!
752-279 CONTROL STICK LOCK – (When radio not installed) NM!
754-032 C DUMP VALVE INSTALLATION (PA-18A only) 18-1215 and up NM!
752-282 D DUSTER EQUIPMENT INSTALLATION – (With tank) NM!
752-295 DUSTER CONVERSION INSTALLATION – Gear pump sprayer to duster (PA-18A only) 18-1215 to 18-3013 NM!
754-010 D DUSTER CONVERSION INSTALLATION – 1” pump sprayer (high density) to duster NM!
754-011 DUSTER CONVERSION INSTALLATION – ¾” pump sprayer to duster (PA-18A only) 18-1215 to 18-3013 NM!
754-040 DUSTER VENTURI CONVERSION – For airplanes presently equipped with old type (PA-18A only) 18-3014 and up NM!
venturi
754-147 DUSTER EQUIPMENT INSTALLATION – With tank (PA-18A only) 18-5295 and up NM!
754-148 DUSTER CONVERSION INSTALLATION – 1” pump sprayer to duster (PA-18A only) 18-5295 and up NM!
752-190 ELECTRICAL EQUIPMENT – Power supply, 95hp 18-1 to 18-664 inclusive NM!
752-219 ELECTRICAL EQUIPMENT – Power supply, 95hp 18-665 to 18-1214 inclusive NM!
752-189 ELECTRICAL EQUIPMENT – Power supply, 105hp, 125hp 18-1 to 18-664 inclusive NM!
752-217 ELECTRICAL EQUIPMENT – Power supply, 125hp 18-665 to 18-1214 inclusive NM!
752-239 ELECTRICAL EQUIPMENT – Power supply, 125hp, 135hp, (sealed battery box) (PA-18 only) 18-1215 to 18-3013 NM!
752-238 E ELECTRICAL EQUIPMENT – Power supply NM!
754-028 ELECTRICAL EQUIPMENT – Power supply, 135hp, 150hp (PA-18 only) 18-3014 and up NM!
754-029 ELECTRICAL EQUIPMENT – Power supply, 135hp, 150hp (PA-18A only) 18-3014 and up NM!
754-030 ELECTRICAL EQUIPMENT – Power supply, 95hp, (sealed battery box) (PA-18 only) 18-1215 to 18-3013 NM!
754-031 ELECTRICAL EQUIPMENT – Power supply, 95hp (PA-18 only) 18-3014 and up NM!
754-002 E HANDLE AND CATCH INSTALLATION – Hopper door NM!

170
