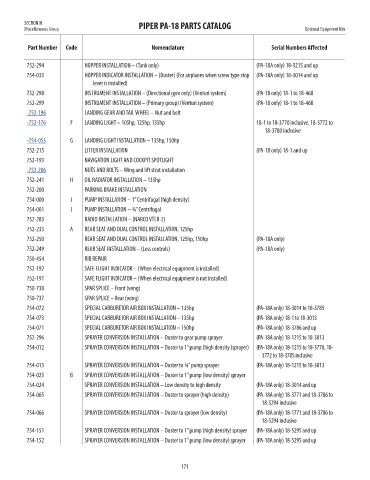

SECTION XI PIPER PA-18 PARTS CATALOG
Miscellaneous Group Optional Equipment Kits

Part Number Code Nomenclature Serial Numbers Affected Price

752-294 HOPPER INSTALLATION – (Tank only) (PA-18A only) 18-1215 and up NM!
754-033 HOPPER INDICATOR INSTALLATION – (Duster) (For airplanes when screw type stop (PA-18A only) 18-3014 and up NM!
lever is installed)
752-298 INSTRUMENT INSTALLATION – (Directional gyro only) (Venturi system) (PA-18 only) 18-1 to 18-468 NM!
752-299 INSTRUMENT INSTALLATION – (Primary group) (Venturi system) (PA-18 only) 18-1 to 18-468 NM!
-752-196 LANDING GEAR AND TAIL WHEEL – Nut and bolt 245.04
-752-176 F LANDING LIGHT – 105hp, 125hp, 135hp 18-1 to 18-3770 inclusive, 18-3772 to 1465.52
18-3780 inclusive
-754-053 G LANDING LIGHT INSTALLATION – 135hp, 150hp 1559.1
752-215 LITTER INSTALLATION (PA-18 only) 18-1 and up NM!
752-193 NAVIGATION LIGHT AND COCKPIT SPOTLIGHT NM!
-752-206 NUTS AND BOLTS – Wing and lift strut installation 177.18
752-241 H OIL RADIATOR INSTALLATION – 135hp NM!
752-200 PARKING BRAKE INSTALLATION NM!
754-000 J PUMP INSTALLATION – 1” Centrifugal (high density) NM!
754-001 J PUMP INSTALLATION – ¾” Centrifugal NM!
752-283 RADIO INSTALLATION – (NARCO VTLR-2) NM!
752-233 A REAR SEAT AND DUAL CONTROL INSTALLATION, 125hp NM!
752-250 REAR SEAT AND DUAL CONTROL INSTALLATION, 125hp, 150hp (PA-18A only) NM!
752-249 REAR SEAT INSTALLATION – (Less controls) (PA-18A only) NM!
750-454 RIB REPAIR NM!
752-192 SAFE FLIGHT INDICATOR – (When electrical equipment is installed) NM!
752-191 SAFE FLIGHT INDICATOR – (When electrical equipment is not installed) NM!

750-738 SPAR SPLICE – Front (wing) NM!
750-737 SPAR SPLICE – Rear (wing) NM!
754-072 SPECIAL CARBURETOR AIR BOX INSTALLATION – 135hp (PA-18A only) 18-3014 to 18-3785 NM!
754-073 SPECIAL CARBURETOR AIR BOX INSTALLATION – 135hp (PA-18A only) 18-1 to 18-3013 NM!
754-071 SPECIAL CARBURETOR AIR BOX INSTALLATION – 150hp (PA-18A only) 18-3786 and up NM!
752-296 SPRAYER CONVERSION INSTALLATION – Duster to gear pump sprayer (PA-18A only) 18-1215 to 18-3013 NM!
754-012 SPRAYER CONVERSION INSTALLATION – Duster to 1” pump (high density (sprayer) (PA-18A only) 18-1215 to 18-3770, 18- NM!
3772 to 18-3785 inclusive
754-013 SPRAYER CONVERSION INSTALLATION – Duster to ¾” pump sprayer (PA-18A only) 18-1215 to 18-3013 NM!
754-023 B SPRAYER CONVERSION INSTALLATION – Duster to 1” pump (low density) sprayer NM!
754-024 SPRAYER CONVERSION INSTALLATION – Low density to high density (PA-18A only) 18-3014 and up NM!

754-065 SPRAYER CONVERSION INSTALLATION – Duster to sprayer (high density) (PA-18A only) 18-3771 and 18-3786 to NM!
18-5294 inclusive
754-066 SPRAYER CONVERSION INSTALLATION – Duster to sprayer (low density) (PA-18A only) 18-1771 and 18-3786 to NM!
18-5294 inclusive
754-151 SPRAYER CONVERSION INSTALLATION – Duster to 1” pump (high density) sprayer (PA-18A only) 18-5295 and up NM!
754-152 SPRAYER CONVERSION INSTALLATION – Duster to 1” pump (low density) sprayer (PA-18A only) 18-5295 and up NM!

171
