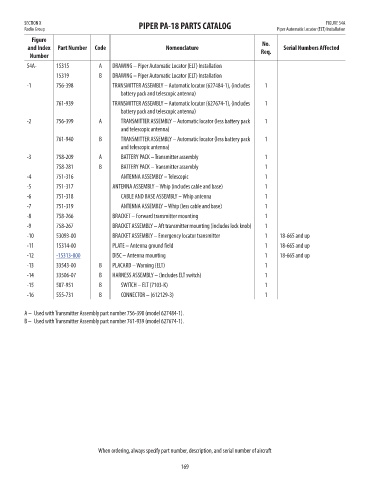

SECTION X PIPER PA-18 PARTS CATALOG FIGURE 54A
Radio Group Piper Automatic Locator (ELT) Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
54A- 15315 A DRAWING – Piper Automatic Locator (ELT) Installation NM!
15319 B DRAWING – Piper Automatic Locator (ELT) Installation NM!
-1 756-398 TRANSMITTER ASSEMBLY – Automatic locator (627484-1), (includes 1 NM!
battery pack and telescopic antenna)
761-939 TRANSMITTER ASSEMBLY – Automatic locator (627674-1), (includes 1 NM!
battery pack and telescopic antenna)
-2 756-399 A TRANSMITTER ASSEMBLY – Automatic locator (less battery pack 1 NM!
and telescopic antenna)
761-940 B TRANSMITTER ASSEMBLY – Automatic locator (less battery pack 1 NM!
and telescopic antenna)
-3 758-209 A BATTERY PACK – Transmitter assembly 1 NM!
758-281 B BATTERY PACK – Transmitter assembly 1 NM!
-4 751-316 ANTENNA ASSEMBLY – Telescopic 1 NM!
-5 751-317 ANTENNA ASSEMBLY – Whip (includes cable and base) 1 NM!
-6 751-318 CABLE AND BASE ASSEMBLY – Whip antenna 1 NM!
-7 751-319 ANTENNA ASSEMBLY – Whip (less cable and base) 1 NM!
-8 758-266 BRACKET – Forward transmitter mounting 1 NM!
-9 758-267 BRACKET ASSEMBLY – Aft transmitter mounting (includes lock knob) 1 NM!
-10 53093-00 BRACKET ASSEMBLY – Emergency locator transmitter 1 18-665 and up NM!
-11 15314-00 PLATE – Antenna ground field 1 18-665 and up NM!
-12 -15313-000 DISC – Antenna mounting 1 18-665 and up 9.32
-13 33543-00 B PLACARD – Warning (ELT) 1 NM!
-14 33506-07 B HARNESS ASSEMBLY – (Includes ELT switch) 1 NM!
-15 587-951 B SWITCH – ELT (7103-K) 1 NM!
-16 555-731 B CONNECTOR – (612129-3) 1 NM!

A – Used with Transmitter Assembly part number 756-398 (model 627484-1).
B – Used with Transmitter Assembly part number 761-939 (model 627674-1).

When ordering, always specify part number, description, and serial number of aircraft

169
