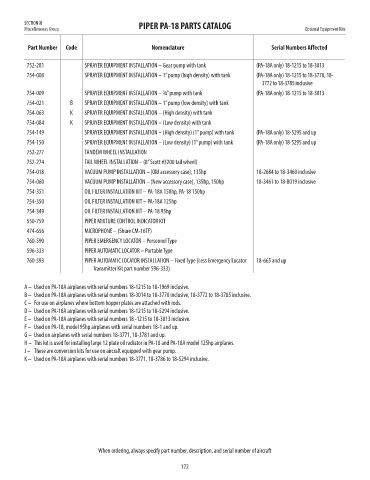

SECTION XI PIPER PA-18 PARTS CATALOG
Miscellaneous Group Optional Equipment Kits

Part Number Code Nomenclature Serial Numbers Affected Price

752-281 SPRAYER EQUIPMENT INSTALLATION – Gear pump with tank (PA-18A only) 18-1215 to 18-3013 NM!
754-008 SPRAYER EQUIPMENT INSTALLATION – 1” pump (high density) with tank (PA-18A only) 18-1215 to 18-3770, 18- NM!
3772 to 18-3785 inclusive
754-009 SPRAYER EQUIPMENT INSTALLATION – ¾” pump with tank (PA-18A only) 18-1215 to 18-3013 NM!
754-021 B SPRAYER EQUIPMENT INSTALLATION – 1” pump (low density) with tank NM!
754-063 K SPRAYER EQUIPMENT INSTALLATION – (High density) with tank NM!
754-084 K SPRAYER EQUIPMENT INSTALLATION – (Low density) with tank NM!
754-149 SPRAYER EQUIPMENT INSTALLATION – (High density) (1” pump) with tank (PA-18A only) 18-5295 and up NM!
754-150 SPRAYER EQUIPMENT INSTALLATION – (Low density) (1” pump) with tank (PA-18A only) 18-5295 and up NM!
752-277 TANDEM WHEEL INSTALLATION NM!
752-274 TAlL WHEEL INSTALLATION – (8” Scott #3200 tail wheel) NM!

754-018 VACUUM PUMP INSTALLATION – (Old accessory case), 135hp 18-2684 to 18-3460 inclusive NM!
754-060 VACUUM PUMP INSTALLATION – (New accessory case), 135hp, 150hp 18-3461 to 18-8019 inclusive NM!
754-351 OIL FILTER INSTALLATION KIT – PA-18A 150hp, PA-18 150hp NM!
754-350 OIL FILTER INSTALLATION KIT – PA-18A 125hp NM!
754-349 OIL FILTER INSTALLATION KIT – PA-18 95hp NM!
550-759 PIPER MIXTURE CONTROL INDICATOR KIT NM!
474-656 MICROPHONE – (Shure CM-16TF) NM!
760-590 PIPER EMERGENCY LOCATOR – Personnel Type NM!
596-333 PIPER AUTOMATIC LOCATOR – Portable Type NM!
760-593 PIPER AUTOMATIC LOCATOR INSTALLATION – Fixed Type (Less Emergency Locator 18-665 and up NM!
Transmitter Kit part number 596-333)

A – Used on PA-18A airplanes with serial numbers 18-1215 to 18-1969 inclusive.
B – Used on PA-18A airplanes with serial numbers 18-3014 to 18-3770 inclusive, 18-3772 to 18-3785 inclusive.
C – For use on airplanes where bottom hopper plates are attached with rods.
D – Used on PA-18A airplanes with serial numbers 18-1215 to 18-5294 inclusive.
E – Used on PA-18A airplanes with serial numbers 18 -1215 to 18-3013 inclusive.
F – Used on PA-18, model 95hp airplanes with serial numbers 18-1 and up.
G – Used on airplanes with serial numbers 18-3771, 18-3781 and up.
H – This kit is used for installing large 12 plate oil radiator in PA-18 and PA-18A model 125hp airplanes.
J – These are conversion kits for use on aircraft equipped with gear pump.
K – Used on PA-18A airplanes with serial numbers 18-3771, 18-3786 to 18-5294 inclusive.

When ordering, always specify part number, description, and serial number of aircraft

172
