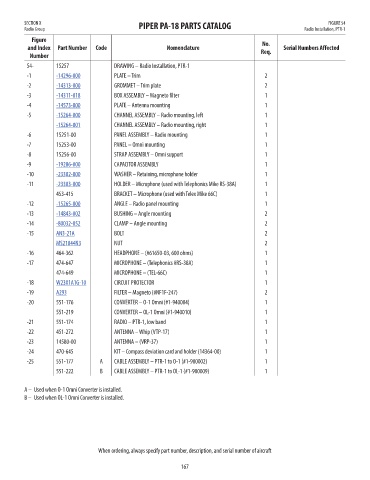

SECTION X PIPER PA-18 PARTS CATALOG FIGURE 54
Radio Group Radio Installation, PTR-1
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
54- 15257 DRAWING – Radio Installation, PTR-1 NM!
-1 -14296-000 PLATE – Trim 2 10.05
-2 -14313-000 GROMMET – Trim plate 2 16.73
-3 -14311-018 BOX ASSEMBLY – Magneto filter 1 658.19
-4 -14573-000 PLATE – Antenna mounting 1 120.61
-5 -15264-000 CHANNEL ASSEMBLY – Radio mounting, left 1 83.21
-15264-001 CHANNEL ASSEMBLY – Radio mounting, right 1 83.21
-6 15251-00 PANEL ASSEMBLY – Radio mounting 1 NM!
-7 15253-00 PANEL – Omni mounting 1 NM!
-8 15256-00 STRAP ASSEMBLY – Omni support 1 NM!
-9 -19286-000 CAPACITOR ASSEMBLY 1 34.88
-10 -23302-000 WASHER – Retaining, microphone holder 1 4.45
-11 -23303-000 HOLDER – Microphone (used with Telephonics Mike RS-38A) 1 1.79
453-415 BRACKET – Microphone (used with Telex Mike 66C) 1 NM!
-12 -15265-000 ANGLE – Radio panel mounting 1 88.17
-13 -14843-002 BUSHING – Angle mounting 2 58.61
-14 -80032-052 CLAMP – Angle mounting 2 22.45
-15 AN3-21A BOLT 2 0.32
MS21044N3 NUT 2 0.24
-16 464-362 HEADPHONE – (#61650-03, 600 ohms) 1 NM!
-17 474-647 MICROPHONE – (Telephonics #RS-38A) 1 NM!
474-649 MICROPHONE – (TEL-66C) 1 NM!
-18 W23X1A1G-10 CIRCUIT PROTECTOR 1 48.4

-19 A293 FILTER – Magneto (#NF1F-247) 2 190.14
-20 551-176 CONVERTER – O-1 Omni (#1-940004) 1 NM!
551-219 CONVERTER – OL-1 Omni (#1-940010) 1 NM!
-21 551-174 RADIO – PTR-1, low band 1 NM!
-22 451-272 ANTENNA – Whip (VTP-17) 1 NM!
-23 14580-00 ANTENNA – (VRP-37) 1 NM!
-24 470-645 KIT – Compass deviation card and holder (14364-00) 1 NM!
-25 551-177 A CABLE ASSEMBLY – PTR-1 to O-1 (#1-900002) 1 NM!
551-222 B CABLE ASSEMBLY – PTR-1 to OL-1 (#1-900009) 1 NM!

A – Used when O-1 Omni Converter is installed.
B – Used when OL-1 Omni Converter is installed.

When ordering, always specify part number, description, and serial number of aircraft

167
