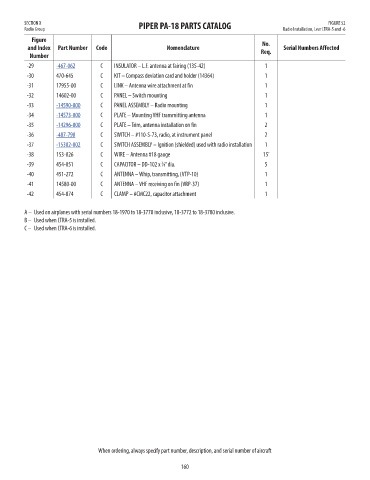

SECTION X PIPER PA-18 PARTS CATALOG FIGURE 52
Radio Group Radio Installation, Lear LTRA-5 and -6
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-29 -467-062 C INSULATOR – L.F. antenna at fairing (135-42) 1 3.82
-30 470-645 C KIT – Compass deviation card and holder (14364) 1 NM!
-31 17955-00 C LINK – Antenna wire attachment at fin 1 NM!
-32 14602-00 C PANEL – Switch mounting 1 NM!
-33 -14590-000 C PANEL ASSEMBLY – Radio mounting 1 295.08
-34 -14573-000 C PLATE – Mounting VHF transmitting antenna 1 120.61
-35 -14296-000 C PLATE – Trim, antenna installation on fin 2 10.05
-36 -487-790 C SWITCH – #110-S-73, radio, at instrument panel 2 20.1
-37 -15302-002 C SWITCH ASSEMBLY – Ignition (shielded) used with radio installation 1 565.04
-38 153-026 C WIRE – Antenna #18 gauge 15’ NM!
-39 454-051 C CAPACITOR – DD-102 x ⁄8” dia. 5 NM!
3
-40 451-272 C ANTENNA – Whip, transmitting, (VTP-10) 1 NM!
-41 14580-00 C ANTENNA – VHF receiving on fin (VRP-37) 1 NM!
-42 454-874 C CLAMP – #CMC22, capacitor attachment 1 NM!

A – Used on airplanes with serial numbers 18-1970 to 18-3770 inclusive, 18-3772 to 18-3780 inclusive.
B – Used when LTRA-5 is installed.
C – Used when LTRA-6 is installed.

When ordering, always specify part number, description, and serial number of aircraft
