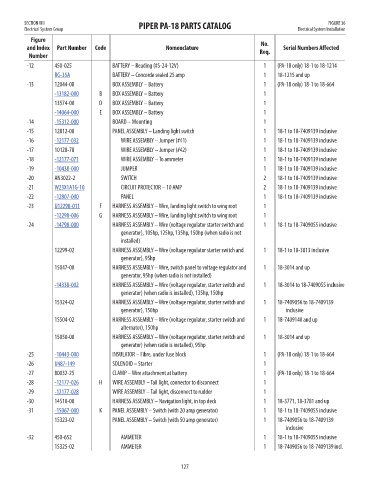

Page 137 - Piper PA-18 Super Cub Interactive Parts Catalog

SECTION VIII PIPER PA-18 PARTS CATALOG FIGURE 36
Electrical System Group Electrical System Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-12 450-025 BATTERY – Reading (#S-24-12V) 1 (PA-18 only) 18-1 to 18-1214 NM!
RG-35A BATTERY – Concorde sealed 25 amp 1 18-1215 and up 452
-13 12044-08 BOX ASSEMBLY – Battery 1 (PA-18 only) 18-1 to 18-664 NM!
-13182-000 B BOX ASSEMBLY – Battery 1 499.83
13574-00 D BOX ASSEMBLY – Battery 1 NM!
-14064-000 E BOX ASSEMBLY – Battery 1 563.53
-14 -15312-000 BOARD – Mounting 1 121.4
-15 12812-00 PANEL ASSEMBLY – Landing light switch 1 18-1 to 18-7409139 inclusive NM!
-16 -12177-032 WIRE ASSEMBLY – Jumper (#41) 1 18-1 to 18-7409139 inclusive 10.57
-17 10128-78 WIRE ASSEMBLY – Jumper (#42) 1 18-1 to 18-7409139 inclusive NM!
-18 -12177-071 WIRE ASSEMBLY – To ammeter 1 18-1 to 18-7409139 inclusive 18.36
-19 -10438-000 JUMPER 1 18-1 to 18-7409139 inclusive 16
-20 AN3022-2 SWITCH 2 18-1 to 18-7409139 inclusive NM!
-21 W23X1A1G-10 CIRCUIT PROTECTOR – 10 AMP 2 18-1 to 18-7409139 inclusive 48.4
-22 -12807-000 PANEL 1 18-1 to 18-7409139 inclusive 89.77
-23 U12298-011 F HARNESS ASSEMBLY – Wire, landing light switch to wing root 1 105.11
-12298-006 G HARNESS ASSEMBLY – Wire, landing light switch to wing root 1 131.79
-24 -14798-000 HARNESS ASSEMBLY – Wire (voltage regulator starter switch and 1 18-1 to 18-7409055 inclusive 362.74
generator), 105hp, 125hp, 135hp, 150hp (when radio is not
installed)
12299-02 HARNESS ASSEMBLY – Wire (voltage regulator starter switch and 1 18-1 to 18-3013 inclusive NM!
generator), 95hp
15047-00 HARNESS ASSEMBLY – Wire, switch panel to voltage regulator and 1 18-3014 and up NM!
generator, 95hp (when radio is not installed)
-14338-002 HARNESS ASSEMBLY – Wire (voltage regulator, starter switch and 1 18-3014 to 18-7409055 inclusive 114.53
generator) (when radio is installed), 135hp, 150hp
15324-02 HARNESS ASSEMBLY – Wire (voltage regulator, starter switch and 1 18-7409056 to 18-7409139 NM!
generator), 150hp inclusive
15504-02 HARNESS ASSEMBLY – Wire (voltage regulator, starter switch and 1 18-7409140 and up NM!
alternator), 150hp
15050-00 HARNESS ASSEMBLY – Wire (voltage regulator, starter switch and 1 18-3014 and up NM!
generator) (when radio is installed), 95hp
-25 -10443-000 INSULATOR – Fibre, under fuse block 1 (PA-18 only) 18-1 to 18-664 23
-26 U487-149 SOLENOID – Starter 1 107.33
-27 80032-25 CLAMP – Wire attachment at battery 1 (PA-18 only) 18-1 to 18-664 NM!
-28 -12177-026 H WIRE ASSEMBLY – Tail light, connector to disconnect 1 4.97
-29 -12177-028 WIRE ASSEMBLY – Tail light, disconnect to rudder 1 11.49
-30 14510-00 HARNESS ASSEMBLY – Navigation light, in top deck 1 18-3771, 18-3781 and up NM!
-31 -15067-000 K PANEL ASSEMBLY – Switch (with 20 amp generator) 1 18-1 to 18-7409055 inclusive 1404.22
15323-02 PANEL ASSEMBLY – Switch (with 50 amp generator) 1 18-7409056 to 18-7409139 NM!
inclusive
-32 450-652 AMMETER 1 18-1 to 18-7409055 inclusive NM!
15325-02 AMMETER 1 18-7409056 to 18-7409139 incl. NM!

127
