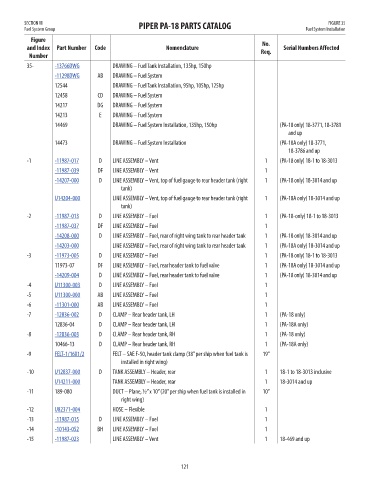

SECTION VII PIPER PA-18 PARTS CATALOG FIGURE 35
Fuel System Group Fuel System Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
35- -13766DWG DRAWING – Fuel Tank Installation, 135hp, 150hp 65.97
-11298DWG AB DRAWING – Fuel System 65.97
12544 DRAWING – Fuel Tank Installation, 95hp, 105hp, 125hp NM!
12458 CD DRAWING – Fuel System NM!
14217 DG DRAWING – Fuel System NM!
14213 E DRAWING – Fuel System NM!
14469 DRAWING – Fuel System Installation, 135hp, 150hp (PA-18 only) 18-3771, 18-3781 NM!
and up

14473 DRAWING – Fuel System Installation (PA-18A only) 18-3771, NM!
18-3786 and up
-1 -11987-017 D LINE ASSEMBLY – Vent 1 (PA-18 only) 18-1 to 18-3013 61.84
-11987-039 DF LINE ASSEMBLY – Vent 1 44.29
-14207-000 D LINE ASSEMBLY – Vent, top of fuel gauge to rear header tank (right 1 (PA-18 only) 18-3014 and up 95.05
tank)
U14204-000 LINE ASSEMBLY – Vent, top of fuel gauge to rear header tank (right 1 (PA-18A only) 18-3014 and up 108.53
tank)
-2 -11987-013 D LINE ASSEMBLY – Fuel 1 (PA-18-only) 18-1 to 18-3013 115.08
-11987-037 DF LINE ASSEMBLY – Fuel 1 81.28
-14208-000 D LINE ASSEMBLY – Fuel, rear of right wing tank to rear header tank 1 (PA-18 only) 18-3014 and up 107.34
-14203-000 LINE ASSEMBLY – Fuel, rear of right wing tank to rear header tank 1 (PA-18A only) 18-3014 and up 27.21
-3 -11973-005 D LINE ASSEMBLY – Fuel 1 (PA-18 only) 18-1 to 18-3013 127.82
11973-07 DF LINE ASSEMBLY – Fuel, rear header tank to fuel valve 1 (PA-18A only) 18-3014 and up NM!
-14209-004 D LINE ASSEMBLY – Fuel, rear header tank to fuel valve 1 (PA-18 only) 18-3014 and up 133.39
-4 U11300-003 D LINE ASSEMBLY – Fuel 1 180.38
-5 U11300-000 AB LINE ASSEMBLY – Fuel 1 193.81
-6 -11301-000 AB LINE ASSEMBLY – Fuel 1 10.75
-7 -12836-002 D CLAMP – Rear header tank, LH 1 (PA-18 only) 91.52
12836-04 D CLAMP – Rear header tank, LH 1 (PA-18A only) NM!
-8 -12836-003 D CLAMP – Rear header tank, RH 1 (PA-18 only) 118.89
10466-13 D CLAMP – Rear header tank, RH 1 (PA-18A only) NM!
-9 FELT-1/16X1/2 FELT – SAE F-50, header tank clamp (38” per ship when fuel tank is 19” 2.95
installed in right wing)
-10 U12837-000 D TANK ASSEMBLY – Header, rear 1 18-1 to 18-3013 inclusive 489.68
U14211-000 TANK ASSEMBLY – Header, rear 1 18-3014 and up 456.8
-11 189-080 DUCT – Plane, ½” x 10” (20” per ship when fuel tank is installed in 10” NM!
right wing)
-12 U82371-004 HOSE – Flexible 1 19.64
-13 -11987-015 D LINE ASSEMBLY – Fuel 1 43.86
-14 -10143-052 BH LINE ASSEMBLY – Fuel 1 21.17
-15 -11987-023 LINE ASSEMBLY – Vent 1 18-469 and up 39.24

121
