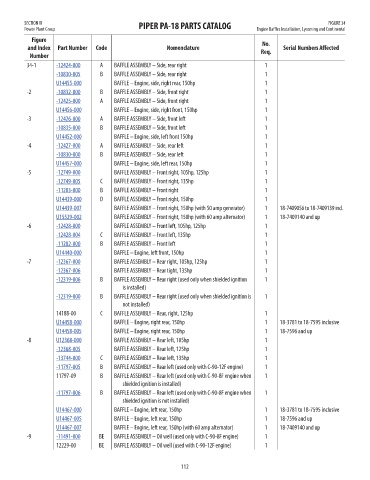

SECTION VI PIPER PA-18 PARTS CATALOG FIGURE 34
Power Plant Group Engine Baffles Installation, Lycoming and Continental
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
34-1 -12424-000 A BAFFLE ASSEMBLY – Side, rear right 1 155.02
-10830-005 B BAFFLE ASSEMBLY – Side, rear right 1 73.88
U14455-000 BAFFLE – Engine, side, right rear, 150hp 1 112.55
-2 -10832-000 B BAFFLE ASSEMBLY – Side, front right 1 98.68
-12425-000 A BAFFLE ASSEMBLY – Side, front right 1 106.45
U14456-000 BAFFLE – Engine, side, right front, 150hp 1 146.63
-3 -12426-000 A BAFFLE ASSEMBLY – Side, front left 1 159.72
-10835-000 B BAFFLE ASSEMBLY – Side, front left 1 78.21
U14452-000 BAFFLE – Engine, side, left front 150hp 1 151.97
-4 -12427-000 A BAFFLE ASSEMBLY – Side, rear left 1 143.46
-10830-000 B BAFFLE ASSEMBLY – Side, rear left 1 69.06
U14457-000 BAFFLE – Engine, side, left rear, 150hp 1 118.91
-5 -12749-000 BAFFLE ASSEMBLY – Front right, 105hp, 125hp 1 231.57
-12749-005 C BAFFLE ASSEMBLY – Front right, 135hp 1 229.26
-11283-000 B BAFFLE ASSEMBLY – Front right 1 57.92
U14439-000 D BAFFLE ASSEMBLY – Front right, 150hp 1 243.33
U14439-007 BAFFLE ASSEMBLY – Front right, 150hp (with 50 amp generator) 1 18-7409056 to 18-7409139 incl. 279.43
U15529-002 BAFFLE ASSEMBLY – Front right, 150hp (with 60 amp alternator) 1 18-7409140 and up 288.52
-6 -12428-000 BAFFLE ASSEMBLY – Front left, 105hp, 125hp 1 350.39
-12428-004 C BAFFLE ASSEMBLY – Front left, 135hp 1 327.29
-11282-000 B BAFFLE ASSEMBLY – Front left 1 95.83
U14440-000 BAFFLE – Engine, left front, 150hp 1 255.06
-7 -12367-000 BAFFLE ASSEMBLY – Rear right, 105hp, 125hp 1 281.65
-12367-006 BAFFLE ASSEMBLY – Rear tight, 135hp 1 332.45
-12319-006 B BAFFLE ASSEMBLY – Rear right (used only when shielded ignition 1 397.93
is installed)
-12319-000 B BAFFLE ASSEMBLY – Rear right (used only when shielded ignition is 1 422.13
not installed)
14188-00 C BAFFLE ASSEMBLY – Rear, right, 125hp 1 NM!
U14458-000 BAFFLE – Engine, right rear, 150hp 1 18-3781 to 18-7595 inclusive 432.51
U14458-005 BAFFLE – Engine, right rear, 150hp 1 18-7596 and up 615
-8 U12368-000 BAFFLE ASSEMBLY – Rear left, 105hp 1 502.76
-12368-005 BAFFLE ASSEMBLY – Rear left, 125hp 1 332.45
-13744-000 C BAFFLE ASSEMBLY – Rear left, 135hp 1 365.36
-11797-005 B BAFFLE ASSEMBLY – Rear left (used only with C-90-12F engine) 1 168.09
11797-09 B BAFFLE ASSEMBLY – Rear left (used only with C-90-8F engine when 1 NM!
shielded ignition is installed)
-11797-006 B BAFFLE ASSEMBLY – Rear left (used only with C-90-8F engine when 1 168.09
shielded ignition is not installed)
U14467-000 BAFFLE – Engine, left rear, 150hp 1 18-3781 to 18-7595 inclusive 473.14
U14467-005 BAFFLE – Engine, left rear, 150hp 1 18-7596 and up 510.35
U14467-007 BAFFLE – Engine, left rear, 150hp (with 60 amp alternator) 1 18-7409140 and up 529.19
-9 -11491-000 BE BAFFLE ASSEMBLY – Oil well (used only with C-90-8F engine) 1 68.17
12229-00 BE BAFFLE ASSEMBLY – Oil well (used with C-90-12F engine) 1 NM!
