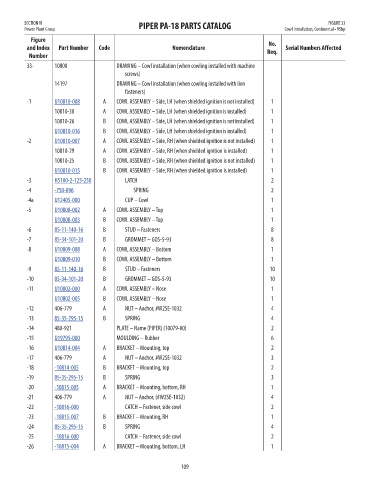

SECTION VI PIPER PA-18 PARTS CATALOG FIGURE 33
Power Plant Group Cowl Installation, Continental • 95hp
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
33- 10800 DRAWING – Cowl installation (when cowling installed with machine NM!
screws)
14197 DRAWING – Cowl installation (when cowling installed with lion NM!
fasteners)
-1 U10810-008 A COWL ASSEMBLY – Side, LH (when shielded ignition is not installed) 1 441.72
10810-30 A COWL ASSEMBLY – Side, LH (when shielded ignition is installed) 1 NM!
10810-26 B COWL ASSEMBLY – Side, LH (when shielded ignition is not installed) 1 NM!
U10810-016 B COWL ASSEMBLY – Side, LH (when shielded ignition is installed) 1 619.51
-2 U10810-007 A COWL ASSEMBLY – Side, RH (when shielded ignition is not installed) 1 441.72
10810-29 A COWL ASSEMBLY – Side, RH (when shielded ignition is installed) 1 NM!
10810-25 B COWL ASSEMBLY – Side, RH (when shielded ignition is not installed) 1 NM!
U10810-015 B COWL ASSEMBLY – Side, RH (when shielded ignition is installed) 1 619.51
-3 H5100-2-125-250 LATCH 2 304.12
-4 -750-896 SPRING 2 11.15
-4a U12405-000 CUP – Cowl 1 102.99
-5 U10808-002 A COWL ASSEMBLY – Top 1 165.29
U10808-003 B COWL ASSEMBLY – Top 1 191.39
-6 85-11-140-16 B STUD – Fasteners 8 1.16
-7 85-34-101-20 B GROMMET – GOS-5-93 8 0.14

-8 U10809-008 A COWL ASSEMBLY – Bottom 1 381.61
U10809-010 B COWL ASSEMBLY – Bottom 1 435.15
-9 85-11-140-16 B STUD – Fasteners 10 1.16
-10 85-34-101-20 B GROMMET – GOS-5-93 10 0.14
-11 U10802-000 A COWL ASSEMBLY – Nose 1 1773.73
U10802-005 B COWL ASSEMBLY – Nose 1 1409.78
-12 406-779 A NUT – Anchor, #W2SE-1032 4 NM!
-13 85-35-295-15 B SPRING 4 1.26
-14 480-921 PLATE – Name (PIPER) (10079-00) 2 NM!
-15 U19795-000 MOULDING – Rubber 6 27.08
-16 U10814-004 A BRACKET – Mounting, top 2 116.68
-17 406-779 A NUT – Anchor, #W2SE-1032 3 NM!
-18 -10814-005 B BRACKET – Mounting, top 2 36.61
-19 85-35-295-15 B SPRING 3 1.26
-20 -10815-005 A BRACKET – Mounting, bottom, RH 1 204.5
-21 406-779 A NUT – Anchor, (#W2SE-1032) 4 NM!
-22 -10816-000 CATCH – Fastener, side cowl 2 54.87
-23 -10815-007 B BRACKET – Mounting, RH 1 76.14
-24 85-35-295-15 B SPRING 4 1.26
-25 -10816-000 CATCH – Fastener, side cowl 2 54.87
-26 -10815-004 A BRACKET – Mounting, bottom, LH 1 269.22

109
