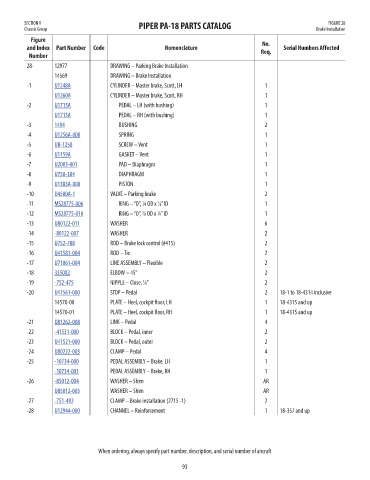

SECTION V PIPER PA-18 PARTS CATALOG FIGURE 28
Chassis Group Brake Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
28- 12977 DRAWING – Parking Brake Installation NM!
14569 DRAWING – Brake Installation NM!
-1 U1248A CYLINDER – Master brake, Scott, LH 1 1355.04
U1260A CYLINDER – Master brake, Scott, RH 1 1355.04
-2 U1715A PEDAL – LH (with bushing) 1 235.45
U1715A PEDAL – RH (with bushing) 1 235.45
-3 1494 BUSHING 2 3.8
-4 U1256A-000 SPRING 1 18.39
-5 UB-1258 SCREW – Vent 1 16.21
-6 U1159A GASKET – Vent 1 3.35
-7 U2003-001 PAD – Diaphragm 1 40.68
-8 U750-384 DIAPHRAGM 1 43.81
-9 U1383A-000 PISTON 1 69.61
-10 U4500A-1 VALVE – Parking brake 2 451.41
-11 MS28775-006 RING – “O”, ¼ OD x ⁄8” ID 1 0.6
1
1
3
-12 MS28775-010 RING – “O”, ⁄8 OD x ⁄4” ID 1 0.3
-13 U80122-011 WASHER 6 1.13
-14 -80122-007 WASHER 2 6.11
-15 U752-788 ROD – Brake lock control (#415) 2 58.71
-16 U41581-004 ROD – Tie 2 82.65
-17 U71061-004 LINE ASSEMBLY – Flexible 2 178.08
-18 3350X2 ELBOW – 45° 2 4.85
-19 -752-475 NIPPLE – Close, ⁄8” 2 7.23
1
-20 U41561-000 STOP – Pedal 2 18-1 to 18-4314 inclusive 27.83
14570-00 PLATE – Heel, cockpit floor, LH 1 18-4315 and up NM!
14570-01 PLATE – Heel, cockpit floor, RH 1 18-4315 and up NM!
-21 U81262-008 LINK – Pedal 4 12.3
-22 -41531-000 BLOCK – Pedal, inner 2 83.12
-23 U41521-000 BLOCK – Pedal, outer 2 100.94
-24 U80222-003 CLAMP – Pedal 4 19.34
-25 -10734-000 PEDAL ASSEMBLY – Brake, LH 1 174.98
-10734-001 PEDAL ASSEMBLY – Brake, RH 1 169.7
-26 -85012-004 WASHER – Shim AR 2.38
U85012-005 WASHER – Shim AR 2.49
-27 -751-492 CLAMP – Brake installation (2715 -1) 2 23.68
-28 U12944-000 CHANNEL – Reinforcement 1 18-357 and up 42.69

When ordering, always specify part number, description, and serial number of aircraft

93
