SECTION V PIPER PA-18 PARTS CATALOG FIGURE 26
Chassis Group Wheel Fender Installation
Figure
Part
No.
and Index Number Code Nomenclature Req. Serial Numbers Affected Price
Number
26- 12671 DRAWING – Wheel Fender Installation NM!
-1 750-954 FENDER SETS 1 NM!
12516-00 FENDER – Left Hand 1 NM!
12516-01 FENDER – Right Hand 1 NM!
751-375 FENDER BRACKET SETS – (Used when landing gear is equipped with 1 NM!
bracket stop)
-2 12904-00 BRACKET – (Used when landing gear is equipped with bracket 1 NM!
stop), Left Hand
12904-01 BRACKET – (Used when landing gear is equipped with bracket 1 NM!
stop), Right Hand
-3 12572-00 TUBE ASSEMBLY – Fender axle 2 NM!
750-957 FENDER BRACKET SETS – (Used when landing gear is not equipped 1 18-1 to 18-548 inclusive NM!
with bracket stop)
-4 12572-00 TUBE ASSEMBLY – Fender axle 2 NM!
-5 12568-00 BRACKET – (Used when landing gear is not equipped with bracket 1 18-1 to 18-548 inclusive NM!
stop), Left Hand
12568-01 BRACKET – (Used when landing gear is not equipped with bracket 1 18-1 to 18-548 inclusive NM!
stop), Right Hand

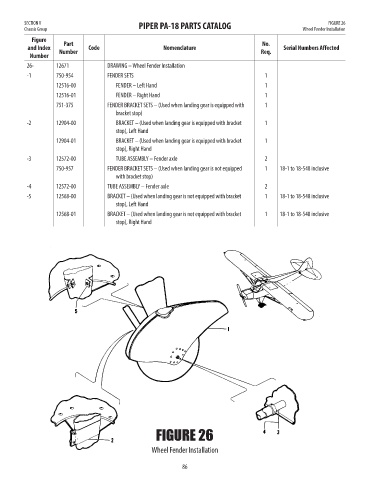

FIGURE 26

Wheel Fender Installation
