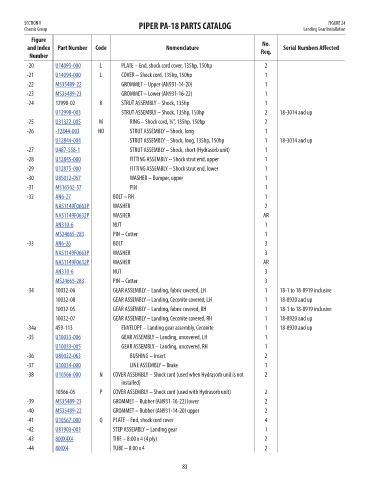

SECTION V PIPER PA-18 PARTS CATALOG FIGURE 24
Chassis Group Landing Gear Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-20 U14093-000 L PLATE – End, shock cord cover, 135hp, 150hp 2 87.91
-21 U14094-000 L COVER – Shock cord, 135hp, 150hp 1 159.44
-22 MS35489-22 GROMMET – Upper (AN931-14-20) 1 2.34
-23 MS35489-23 GROMMET – Lower (AN931-16-22) 1 1.34
-24 12998-02 K STRUT ASSEMBLY – Shock, 135hp 1 NM!
U12998-003 STRUT ASSEMBLY – Shock, 135hp, 150hp 2 18-3014 and up 1271.05
-25 U31322-005 M RING – Shock cord, ¾”, 135hp, 150hp 2 40.86
-26 -12844-003 NO STRUT ASSEMBLY – Shock, long 1 157.88
U12844-004 STRUT ASSEMBLY – Shock, long, 135hp, 150hp 1 18-3014 and up 256.42
-27 U487-558-1 STRUT ASSEMBLY – Shock, short (Hydrasorb unit) 1 482.18
-28 U12845-000 FITTING ASSEMBLY – Shock strut end, upper 1 261.41
-29 U12875-000 FITTING ASSEMBLY – Shock strut end, lower 1 235.21
-30 U85012-057 WASHER – Bumper, upper 1 5.68
-31 MS16562-37 PIN 1 0.62
-32 AN6-27 BOLT – RH 1 1.46
NAS1149F0663P WASHER 2 0.11
NAS1149F0632P WASHER AR 0.06
AN310-6 NUT 1 1.8
MS24665-283 PIN – Cotter 1 0.04
-33 AN6-26 BOLT 3 1.42
NAS1149F0663P WASHER 3 0.11
NAS1149F0632P WASHER AR 0.06
AN310-6 NUT 3 1.8
MS24665-283 PIN – Cotter 3 0.04
-34 10032-06 GEAR ASSEMBLY – Landing, fabric covered, LH 1 18-1 to 18-8919 inclusive NM!
10032-08 GEAR ASSEMBLY – Landing, Ceconite covered, LH 1 18-8920 and up NM!
10032-05 GEAR ASSEMBLY – Landing, fabric covered, RH 1 18-1 to 18-8919 inclusive NM!
10032-07 GEAR ASSEMBLY – Landing, Ceconite covered, RH 1 18-8920 and up NM!
-34a 459-113 ENVELOPE – Landing gear assembly, Ceconite 1 18-8920 and up NM!
-35 U10033-006 GEAR ASSEMBLY – Landing, uncovered, LH 1 917.09
U10033-005 GEAR ASSEMBLY – Landing, uncovered, RH 1 877.71
-36 U80022-063 BUSHING – Insert 2 13.19
-37 U10034-000 LINE ASSEMBLY – Brake 1 69.42
-38 U10566-000 N COVER ASSEMBLY – Shock cord (used when Hydrasorb unit is not 2 73.81
installed)
10566-05 P COVER ASSEMBLY – Shock cord (used with Hydrasorb unit) 2 NM!
-39 MS35489-23 GROMMET – Rubber (AN931-16-22) lower 2 1.34
-40 MS35489-22 GROMMET – Rubber (AN931-14-20) upper 2 2.34
-41 U10567-000 Q PLATE – End, shock cord cover 4 97.06
-42 U81903-003 STEP ASSEMBLY – Landing gear 1 307.34
-43 800X4X4 TIRE – 8:00 x 4 (4 ply) 2 593.12
-44 800X4 TUBE – 8:00 x 4 2 272.42

83
