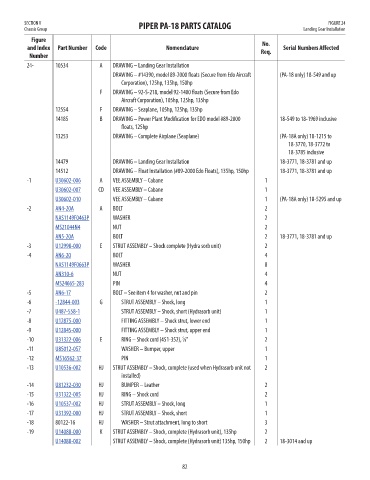

SECTION V PIPER PA-18 PARTS CATALOG FIGURE 24
Chassis Group Landing Gear Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
24- 10534 A DRAWING – Landing Gear Installation NM!
DRAWING – #14390, model 89-2000 floats (Secure from Edo Aircraft (PA-18 only) 18-549 and up x
Corporation), 125hp, 135hp, 150hp
F DRAWING – 92-S-218, model 92-1400 floats (Secure from Edo x
Aircraft Corporation), 105hp, 125hp, 135hp
12554 F DRAWING – Seaplane, 105hp, 125hp, 135hp NM!
14185 B DRAWING – Power Plant Modification for EDO model #89-2000 18-549 to 18-1969 inclusive NM!
floats, 125hp
13253 DRAWING – Complete Airplane (Seaplane) (PA-18A only) 18-1215 to NM!
18-3770, 18-3772 to
18-3785 inclusive
14479 DRAWING – Landing Gear Installation 18-3771, 18-3781 and up NM!
14512 DRAWING – Float Installation (#89-2000 Edo Floats), 135hp, 150hp 18-3771, 18-3781 and up NM!
-1 U30602-006 A VEE ASSEMBLY – Cabane 1 425.74
U30602-007 CD VEE ASSEMBLY – Cabane 1 577
U30602-010 VEE ASSEMBLY – Cabane 1 (PA-18A only) 18-5295 and up 482.55
-2 AN4-20A A BOLT 2 0.4
NAS1149F0463P WASHER 2 0.06
MS21044N4 NUT 2 0.3
AN5-20A BOLT 2 18-3771, 18-3781 and up 0.7
-3 U12998-000 E STRUT ASSEMBLY – Shock complete (Hydra sorb unit) 2 1232.1
-4 AN6-20 BOLT 4 1.19
NAS1149F0663P WASHER 8 0.11
AN310-6 NUT 4 1.8
MS24665-283 PIN 4 0.04
-5 AN6-17 BOLT – See item 4 for washer, nut and pin 2 1.5
-6 -12844-003 G STRUT ASSEMBLY – Shock, long 1 157.88
-7 U487-558-1 STRUT ASSEMBLY – Shock, short (Hydrasorb unit) 1 482.18
-8 U12875-000 FITTING ASSEMBLY – Shock strut, lower end 1 235.21
-9 U12845-000 FITTING ASSEMBLY – Shock strut, upper end 1 261.41
-10 U31322-006 E RING – Shock cord (451-352), ⁄8” 2 41.33
5
-11 U85012-057 WASHER – Bumper, upper 1 5.68
-12 MS16562-37 PIN 1 0.62
-13 U10536-002 HJ STRUT ASSEMBLY – Shock, complete (used when Hydrasorb unit not 2 1184.96
installed)
-14 U81232-030 HJ BUMPER – Leather 2 4.3
-15 U31322-005 HJ RING – Shock cord 2 40.86
-16 U10537-002 HJ STRUT ASSEMBLY – Shock, long 1 451.93
-17 U31392-000 HJ STRUT ASSEMBLY – Shock, short 1 550.04
-18 80122-16 HJ WASHER – Strut attachment, long to short 3 NM!
-19 U14088-000 K STRUT ASSEMBLY – Shock, complete (Hydrasorb unit), 135hp 2 1471.21
U14088-002 STRUT ASSEMBLY – Shock, complete (Hydrasorb unit) 135hp, 150hp 2 18-3014 and up 1471.21
