FIGURE 21

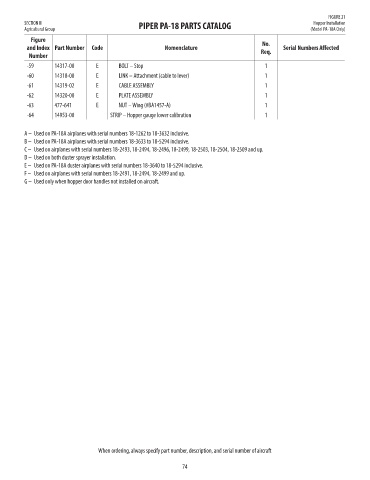

SECTION III PIPER PA-18 PARTS CATALOG Hopper Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-59 14317-00 E BOLT – Stop 1 NM!
-60 14318-00 E LINK – Attachment (cable to lever) 1 NM!
-61 14319-02 E CABLE ASSEMBLY 1 NM!
-62 14320-00 E PLATE ASSEMBLY 1 NM!
-63 477-641 E NUT – Wing (#BA1457-A) 1 NM!
-64 14953-00 STRIP – Hopper gauge lower calibration 1 NM!

A – Used on PA-18A airplanes with serial numbers 18-1262 to 18-3632 inclusive.
B – Used on PA-18A airplanes with serial numbers 18-3633 to 18-5294 inclusive.
C – Used on airplanes with serial numbers 18-2493, 18-2494, 18-2496, 18-2499, 18-2503, 18-2504, 18-2509 and up.
D – Used on both duster sprayer installation.
E – Used on PA-18A duster airplanes with serial numbers 18-3640 to 18-5294 inclusive.
F – Used on airplanes with serial numbers 18-2491, 18-2494, 18-2499 and up.
G – Used only when hopper door handles not installed on aircraft.

When ordering, always specify part number, description, and serial number of aircraft

74
