FIGURE 21

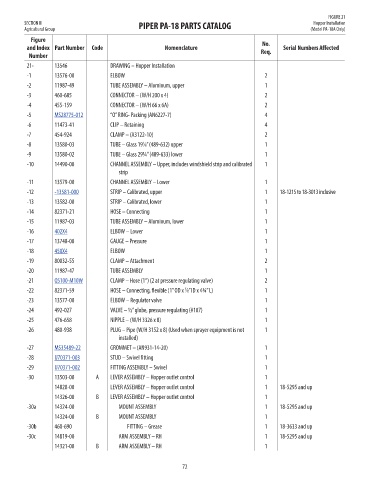

SECTION III PIPER PA-18 PARTS CATALOG Hopper Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
21- 13546 DRAWING – Hopper Installation NM!
-1 13576-00 ELBOW 2 NM!
-2 11987-49 TUBE ASSEMBLY – Aluminum, upper 1 NM!
-3 460-685 CONNECTOR – (W/H 200 x 4) 2 NM!
-4 455-159 CONNECTOR – (W/H 66 x 6A) 2 NM!
-5 MS28775-012 “O” RING- Packing (AN6227-7) 4 0.32
-6 11473-41 CLIP – Retaining 4 NM!
-7 454-924 CLAMP – (A3122-10) 2 NM!
1
-8 13580-03 TUBE – Glass 19 ⁄8” (489-632) upper 1 NM!
-9 13580-02 TUBE – Glass 29¼” (489-633) lower 1 NM!
-10 14490-00 CHANNEL ASSEMBLY – Upper, includes windshield strip and calibrated 1 NM!
strip
-11 13579-00 CHANNEL ASSEMBLY – Lower 1 NM!
-12 -13581-000 STRIP – Calibrated, upper 1 18-1215 to 18-3013 inclusive 33.45
-13 13582-00 STRIP – Calibrated, lower 1 NM!
-14 82371-21 HOSE – Connecting 1 NM!
-15 11987-03 TUBE ASSEMBLY – Aluminum, lower 1 NM!
-16 402X4 ELBOW – Lower 1 5.08
-17 13748-00 GAUGE – Pressure 1 NM!
-18 450X4 ELBOW 1 2.4
-19 80032-55 CLAMP – Attachment 2 NM!
-20 11987-47 TUBE ASSEMBLY 1 NM!
-21 QS100-M10W CLAMP – Hose (1“) (2 at pressure regulating valve) 2 4.65
-22 82371-59 HOSE – Connecting, flexible (1” OD x ⁄8” ID x 4¾” L) 1 NM!
5
-23 13577-00 ELBOW – Regulator valve 1 NM!
-24 492-027 VALVE – ½” globe, pressure regulating (#107) 1 NM!
-25 476-658 NIPPLE – (W/H 3326 x 8) 1 NM!
-26 480-938 PLUG – Pipe (W/H 3152 x 8) (Used when sprayer equipment is not 1 NM!
installed)
-27 MS35489-22 GROMMET – (AN931-14-20) 1 2.34
-28 U70371-003 STUD – Swivel fitting 1 26.41
-29 U70371-002 FITTING ASSEMBLY – Swivel 1 15.11
-30 13503-00 A LEVER ASSEMBLY – Hopper outlet control 1 NM!
14828-00 LEVER ASSEMBLY – Hopper outlet control 1 18-5295 and up NM!
14326-00 B LEVER ASSEMBLY – Hopper outlet control 1 NM!
-30a 14324-00 MOUNT ASSEMBLY 1 18-5295 and up NM!
14324-00 B MOUNT ASSEMBLY 1 NM!
-30b 460-690 FITTING – Grease 1 18-3633 and up NM!
-30c 14819-00 ARM ASSEMBLY – RH 1 18-5295 and up NM!
14321-00 B ARM ASSEMBLY – RH 1 NM!
