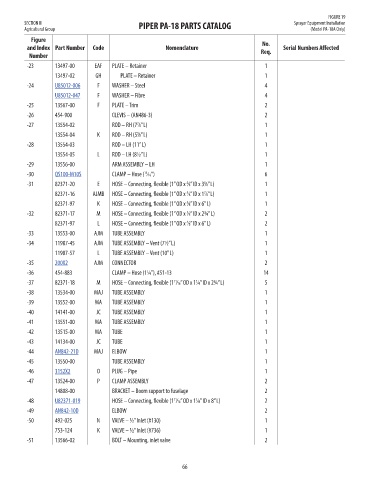

FIGURE 19
SECTION III PIPER PA-18 PARTS CATALOG Sprayer Equipment Installation
Agricultural Group (Model PA-18A Only)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-23 13497-00 EAF PLATE – Retainer 1 NM!
13497-02 GH PLATE – Retainer 1 NM!
-24 U85012-006 F WASHER – Steel 4 3.33
U85012-047 F WASHER – Fibre 4 0.83
-25 13567-00 F PLATE – Trim 2 NM!
-26 454-900 CLEVIS – (AN486-3) 2 NM!
-27 13554-02 ROD – RH (7 ⁄8” L) 1 NM!
7
5
13554-04 K ROD – RH (5 ⁄8” L) 1 NM!
-28 13554-03 ROD – LH (11” L) 1 NM!
13554-05 L ROD – LH (8½” L) 1 NM!
-29 13556-00 ARM ASSEMBLY – LH 1 NM!
-30 QS100-M10S CLAMP – Hose ( ⁄16”) 6 2.71
15
-31 82371-20 E HOSE – Connecting, flexible (1” OD x ⁄8” ID x 3 ⁄8” L) 1 NM!
5
5
82371-16 AJMB HOSE – Connecting, flexible (1” OD x ⁄8” ID x 1 ⁄8” L) 1 NM!
7
5
82371-97 K HOSE – Connecting, flexible (1” OD x ⁄8” ID x 6” L) 1 NM!
5
-32 82371-17 M HOSE – Connecting, flexible (1” OD x ⁄8” ID x 2¾” L) 2 NM!
5
4
82371-97 L HOSE – Connecting, flexible (1” OD x ⁄8” ID x 6” L) 2 NM!
-33 13553-00 AJM TUBE ASSEMBLY 1 NM!
-34 11987-45 AJM TUBE ASSEMBLY – Vent (7½” L) 1 NM!
11987-57 L TUBE ASSEMBLY – Vent (10” L) 1 NM!
-35 200X2 AJM CONNECTOR 2 2.11
-36 454-883 CLAMP – Hose (1¼”), #51-13 14 NM!
-37 82371-18 M HOSE – Connecting, flexible (1 ⁄16” OD x 1¼” ID x 2¾” L) 5 NM!
11
-38 13534-00 MAJ TUBE ASSEMBLY 1 NM!
-39 13552-00 MA TUBE ASSEMBLY 1 NM!
-40 14141-00 JC TUBE ASSEMBLY 1 NM!
-41 13551-00 MA TUBE ASSEMBLY 1 NM!
-42 13515-00 MA TUBE 1 NM!
-43 14134-00 JC TUBE 1 NM!
-44 AN842-21D MAJ ELBOW 1 54.7
-45 13550-00 TUBE ASSEMBLY 1 NM!
-46 3152X2 O PLUG – Pipe 1 1.42
-47 13524-00 P CLAMP ASSEMBLY 2 NM!
14808-00 BRACKET – Boom support to fuselage 2 NM!
-48 U82371-019 HOSE – Connecting, flexible (1 ⁄16” OD x 1¼” ID x 8” L) 2 34.52
11
-49 AN842-10D ELBOW 2 25.63
-50 492-025 N VALVE – ½” Inlet (#130) 1 NM!
753-124 K VALVE – ½” Inlet (#736) 1 NM!
-51 13566-02 BOLT – Mounting, inlet valve 2 NM!
