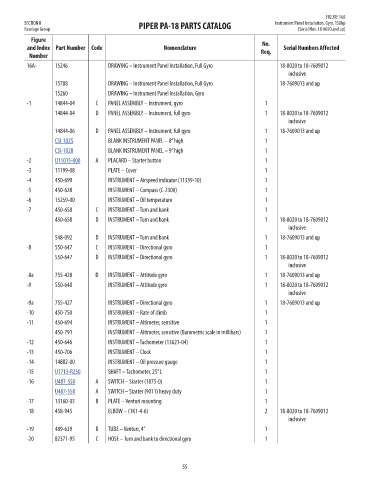

FIGURE 16A
SECTION II PIPER PA-18 PARTS CATALOG Instrument Panel Installation, Gyro, 150hp
Fuselage Group (Serial Nos. 18-8020 and up)
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
16A- 15246 DRAWING – Instrument Panel Installation, Full Gyro 18-8020 to 18-7609012 NM!
inclusive
15788 DRAWING – Instrument Panel Installation, Full Gyro 18-7609013 and up NM!
15260 DRAWING – Instrument Panel Installation, Gyro NM!
-1 14844-04 C PANEL ASSEMBLY – Instrument, gyro 1 NM!
14844-04 D PANEL ASSEMBLY – Instrument, full gyro 1 18-8020 to 18-7609012 NM!
inclusive
14844-06 D PANEL ASSEMBLY – Instrument, full gyro 1 18-7609013 and up NM!
CSI-1025 BLANK INSTRUMENT PANEL – 8” high 1 105.47
CSI-1028 BLANK INSTRUMENT PANEL – 9” high 1 105.47
-2 U11015-000 A PLACARD – Starter button 1 17.34
-3 11199-08 PLATE – Cover 1 NM!
-4 450-699 INSTRUMENT – Airspeed indicator (11339-10) 1 NM!
-5 450-628 INSTRUMENT – Compass (C-2300) 1 NM!
-6 15259-00 INSTRUMENT – Oil temperature 1 NM!
-7 450-658 C INSTRUMENT – Turn and bank 1 NM!
450-658 D INSTRUMENT – Turn and bank 1 18-8020 to 18-7609012 NM!
inclusive
548-092 D INSTRUMENT – Turn and bank 1 18-7609013 and up NM!
-8 550-647 C INSTRUMENT – Directional gyro 1 NM!
550-647 D INSTRUMENT – Directional gyro 1 18-8020 to 18-7609012 NM!
inclusive
-8a 755-428 D INSTRUMENT – Attitude gyro 1 18-7609013 and up NM!
-9 550-648 INSTRUMENT – Attitude gyro 1 18-8020 to 18-7609012 NM!
inclusive
-9a 755-427 INSTRUMENT – Directional gyro 1 18-7609013 and up NM!
-10 450-750 INSTRUMENT – Rate of climb 1 NM!
-11 450-694 INSTRUMENT – Altimeter, sensitive 1 NM!
450-791 INSTRUMENT – Altimeter, sensitive (Barometric scale in millibars) 1 NM!
-12 450-646 INSTRUMENT – Tachometer (13621-04) 1 NM!
-13 450-706 INSTRUMENT – Clock 1 NM!
-14 14882-00 INSTRUMENT – Oil pressure gauge 1 NM!
-15 U1713-R250 SHAFT – Tachometer, 25” L 1 126.13
-16 U487-550 A SWITCH – Starter (1875-0) 1 65.84
U487-550 A SWITCH – Starter (9011) heavy duty 1 65.84
-17 13160-03 B PLATE – Venturi mounting 1 NM!
-18 458-945 ELBOW – (1K1-4-6) 2 18-8020 to 18-7609012 NM!
inclusive
-19 489-639 B TUBE – Venturi, 4” 1 NM!
-20 82371-95 C HOSE – Turn and bank to directional gyro 1 NM!

55
